YCS-103 Three-Phase Power Source for Energy Meter Testing

Brand Name:	GENY
Model Number:	YCSS-103
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (intergration Time 150s）

Distortion Factor:

Better Than 0.3% For Linear Resistance Load

Harmonics:

2nd – 21st Free Programmable

Voltage Supply:

3×220/380V±10% Or Customized 50/60Hz±2Hz

Test Current Output:

3×(1mA – 100A)

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Product Description

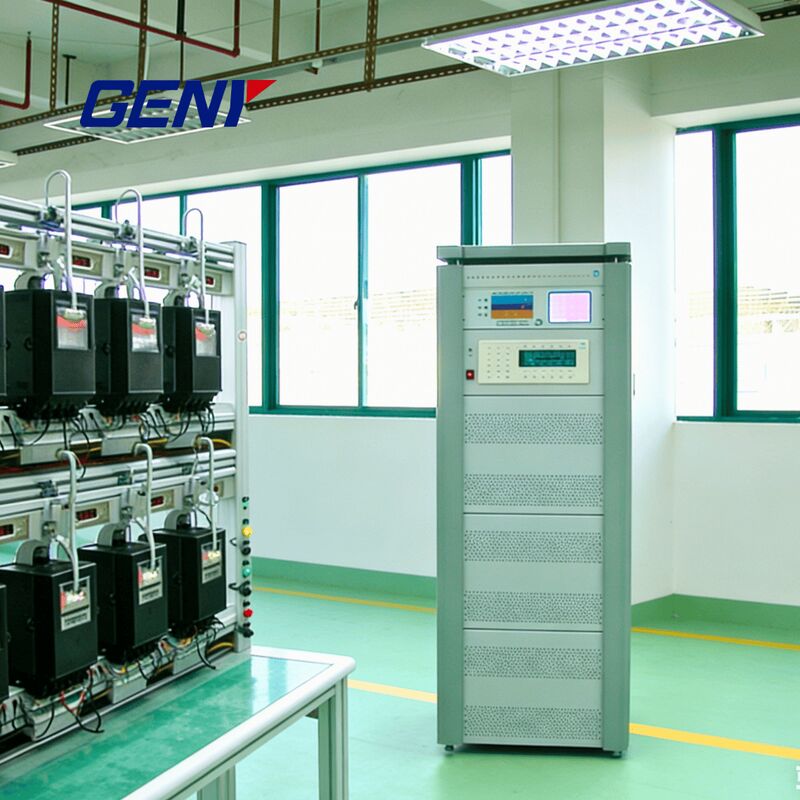

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
