Stationary Power Source
Created with Pixso.

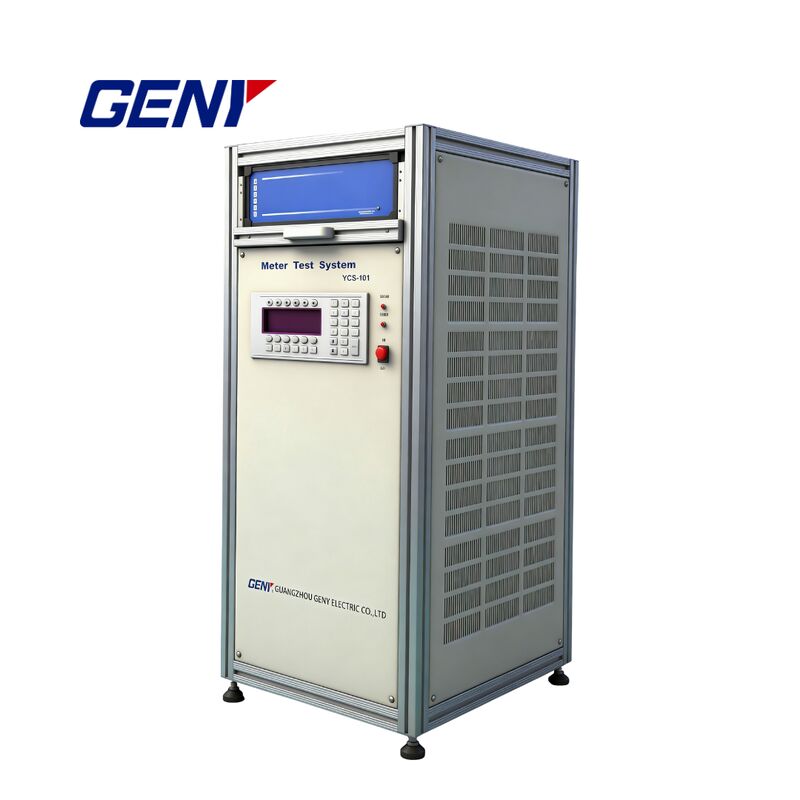

High-Precision Stationary Power Source for Energy Meter Test Bench

High-Precision Stationary Power Source for Energy Meter Test Bench

High-Precision Stationary Power Source for Energy Meter Test Bench

Brand Name: GENY
Model Number: YCSS-103
MOQ: 1
Price: negotiate rates
Payment Terms: T/T,L/C,D/P,T/T
Supply Ability: 10 pcs/ 1 months
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Document:
Catalogue——Meter Test S...m..pdf
Voltage Supply:
220V±10% Or 50/60Hz±2Hz
Current Test Current Output:
1mA – 100A
Test Voltage Output (Phase-Neutral):
24V – 288V Or Customized
Load Regulation From 0-max. Load:
< 0.01%
Packaging Details:
Plywood cases
Supply Ability:
10 pcs/ 1 months
Highlight:

high-precision stationary power source

,

energy meter test bench power supply

,

stationary power source with warranty

Product Description
High-Precision Stationary Power Source for Energy Meter Test Bench
Product Overview

The Stationary Power Source is a high-accuracy, high-stability programmable power source specifically designed for energy meter testing, calibration systems, and metrology laboratories. It provides reliable and stable voltage and current output to ensure precise and repeatable test results.

  • High accuracy and excellent output stability, ideal for precision measurement applications
  • Equipped with RS232 communication interface for automatic and remote operation
  • Optional built-in keyboard for convenient manual operation
  • Supports programmable harmonic output from 2nd to 21st order, with adjustable amplitude and phase angle
  • Rugged aluminum alloy enclosure, lightweight, high strength, and corrosion-resistant
  • Comprehensive protection functions, including:
    • Overload protection
    • Short voltage circuit protection
    • Open current circuit protection
  • User-friendly control software with simple operation and fast system integration
Applications
  • National and regional utility companies
  • Government metrology and calibration bureaus
  • Energy meter and electrical instrument manufacturers
  • Testing laboratories and research institutions
  • Energy meter test benches and verification systems
Primary Competitive Advantages
  • Industrial-grade, high-quality design for long-term stable operation
  • High power output capacity:
    • Maximum voltage output power: 1000 VA
    • Maximum current output power: 1500 VA
  • Extremely high power stability, suitable for high-precision calibration environments
  • Low distortion performance, with total harmonic distortion less than 0.3% under linear resistive load
High-Precision Stationary Power Source for Energy Meter Test Bench 0
