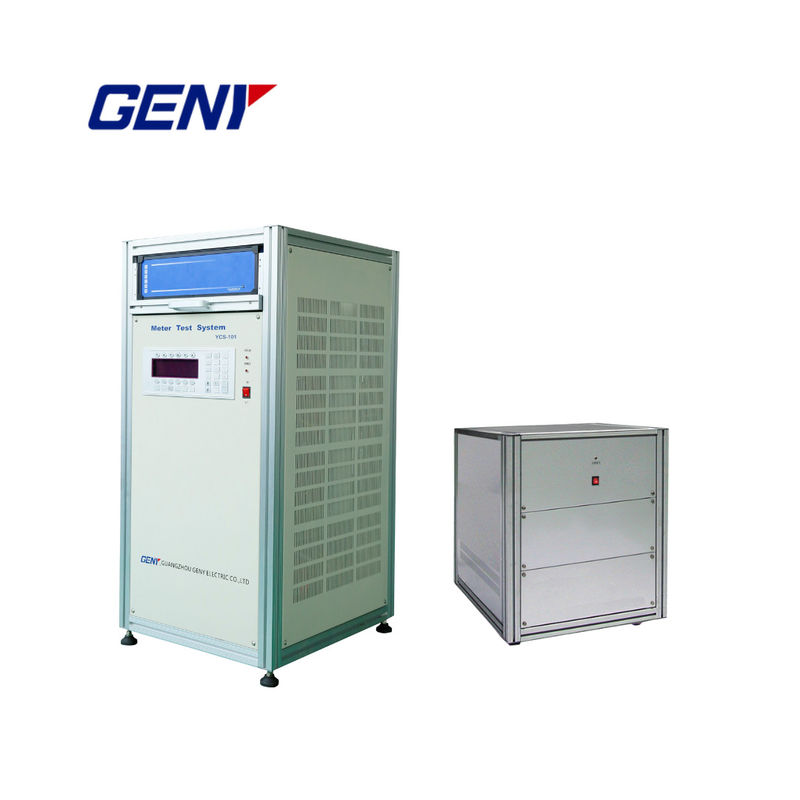

| Brand Name: | GENY |
| Model Number: | YC1893D |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 100/Year |
1. High-precision and high-stability output.
2. RS232 interface for automated control.
3. Optional keyboard for manual control.
4. 2nd to 21st harmonics programmable in amplitude and phase.
5. Constructed from lightweight, strong, and corrosion-resistant aluminum alloy.
6. Overload, short-circuit, and open-circuit protection.
7. PC control software included; supports secondary development.
|
|
YCS-101-250 |
YCS-101-600 |
YCS-101-1200 |
YCS-101-2500 |
|
Voltage Source |
||||
|
Test voltage output (Phase-Neutral) |
24V – 288V or customized |
|||
|
Power of the voltage output |
100VA |
250VA |
500VA |
1000VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|||
|
Setting accuracy |
Better than 0.05% at the final range value |
|||
|
Stability |
Better than 0.005%/h (integration time 150 s) |
|||
|
Load regulation from 0-max. load |
< 0.01% |
|||
|
Distortion factor |
< 0.3% for linear resistance load |
|||
|
Harmonics |
2nd – 21st free programmable |
|||
|
Current Source |
||||
|
Test current output |
1mA – 100A |
|||
|
Power of the current output |
150VA |
350VA |
750VA |
1500VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|||
|
Setting accuracy |
Better than 0.05% at the final range value |
|||
|
Stability |
Better than 0.005%/h (integration time 150 s) |
|||
|
Load regulation from 0-max. load |
< 0.01% |
|||
|
Distortion factor |
< 0.3% for linear resistance load |
|||
|
Harmonics |
2nd – 21st free programmable |
|||
|
Phase angle |
||||
|
Range |
0 -- 360° |
|||
|
Resolution |
0.01° |
|||
|
Setting accuracy |
0.1° |
|||
|
Frequency |
||||
|
Range |
45Hz – 65Hz |
|||
|
Resolution |
0.01Hz |
|||
|
|
||||
|
Voltage Supply |
220V±10% or 50/60Hz±2Hz or customized |
|||
|
Ambient temperature |
-10°C -- +40°C |
|||
|
Relative humidity |
35% -- 90% |
|||
