YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing

Name: YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCSS-101
Availability: InStock

Brand Name:	GENY
Model Number:	YCSS-101
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Test Voltage Output:

0V-480V

Power Of The Voltage Output:

Max.25VA

Test Current Output:

1mA-120A

Phase Angle Range:

0 -- 360°

Frequency:

45Hz-65Hz

Value:

High Performance, Low Cost

Control:

Manual Or PC

Integration:

Portable Test System

Input Channel:

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Portable Single-Phase Power Standard

Precision Single-Phase Power Standard

Advanced Testing Single-Phase Power Standard

Product Description

YCSS-101 Portable Precision Single-Phase Power Standard for Advanced Testing

Specifications

Voltage
Test voltage output	0V-480V	Resolution	1mV
Power of the voltage output	Max.25VA	Setting accuracy	0.05% at 50-400V
Stability	0.03%/h (integration time 150s)	Harmonics	2nd-41st free programmable
Distortion factor	<0.2% for linear resistance load
Current
Test current output	1mA-120A	Setting accuracy	0.05% at 1mA-120A
Power of the voltage output	Max.120VA	Stability	0.003%/h (Integration time 150s)
Resolution	0.2mA	Distortion factor	<0.2% for linear resistance load
Harmonics	2nd-21st free programmable
Phase angle		Frequency
Range	0°-360°	Range	45Hz-65Hz
Resolution	0.001°	Resolution	0.0001Hz
Setting accuracy	0.005°
Pulse output
High frequency output	>20A FH=10^7; >2A FH=10^8; >0.2A FH=10^9
Pulse Input
Input channel	2
Input frequency	Max.100kHz
Other
Voltage Supply	220V±10% 50/60Hz±2Hz	Dimensions (W×H×D) (mm)	484x184×543
Ambient temperature	-10°C-+40°C	Weight (kg)	15
Relative humidity	35%-85%	Conformity	CE conform

Features & Functions

Compact Power Solution:A portable system with integrated precision and power for essential testing needs.
Cost-Effective Performance:Premium performance at a fraction of the cost, leading industry value.
Wide-Range Outputs:Versatile for diverse tests with 0V-480V voltage and 1mA-120A current capabilities.
Efficient Calibration:Dual-pulse signal input for synchronized or individual meter calibration, boosting accuracy.
Flexible Controls:Manual or PC-operated, catering to your operational preference.
Seamless Integration:Quick connect with existing systems and PCs for enhanced control and communication.

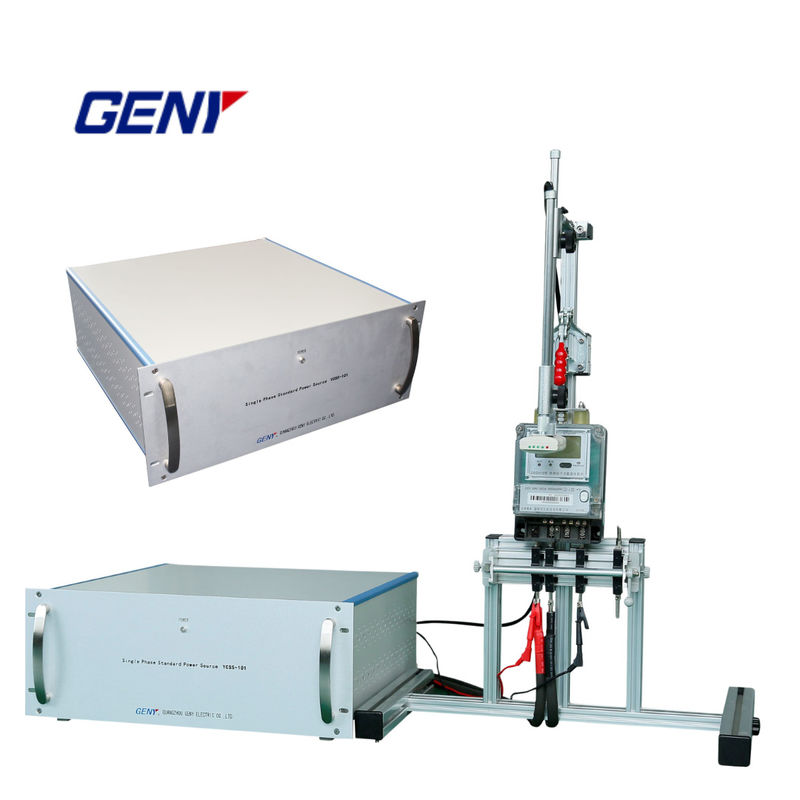

YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing 0

YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing 1

YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing 2

If you would like to explore further details, please navigate to the following URL:http://www.genymetertestequipment.com/
