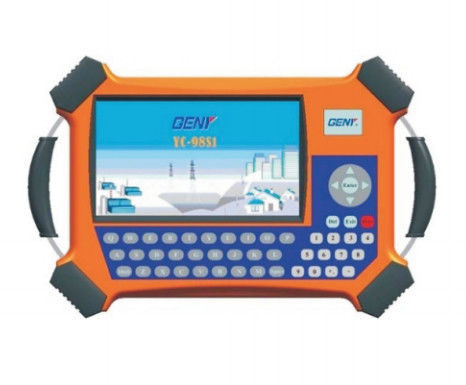

Portable Reference Standard YC-98S1 High Accuracy Test Equipment For Industrial Power Measurement

Portable Reference Standard YC-98S1 High Accuracy Test Equipment For Industrial Power Measurement

Brand Name:	GENY
Model Number:	YC89S1
Payment Terms:	L/C, T/T, D/P
Supply Ability:	300/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC98S1

Warranty:

1 Year

Voltage Output:

30V-480V

Current Output:

0.05-10A

Thermocouple (TC):

Resistance-Temperature Detector (RTD):

LCD Display:

With LCD Display

Customized:

Customized

Trademark:

GENY

Transport Package:

Carton

Specification:

1.5KG

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

300/Year

Highlight:

Industrial Power Measurement Portable Reference Standard

YC-98S1 Portable Reference Standard

High Accuracy Portable Reference Standard

Product Description

Portable Reference Standard YC-98S1 High Accuracy Test Equipment for Industrial Power Measurement

Product Parameters

Application Conditlons and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25°C-+45°C	40%--95%	<2500m	IP30	CE conform

Type	YC-98S1
Test voltage
Range	30V-480V
Error	±0.05%
Harmonic	2nd-51st
Test current
Range(direct connection)	0.05-10A
Range(clamp CT)	100A
	5A,500A,1000A,2000A
	(option)
Error(direct connection)	±0.05%
Error(clamp CT)	±0.2%(5A,100A)
Error(clamp CT)	±0.5%(other)
Harmonic	2nd-51st
Power measure error
Active power(direct connection)	±0.05%
Active power(clamp CT)	±0.2%(5A,100A) ±0.5%(other)
Reactive power(direct)	±0.1%
Reactive power(clamp CT)	±0.2%(5A,100A)
Reactive power(clamp CT)	±0.5%(other)
Energy measure error
Active energy(direct)	±0.05%
Active energy(clamp CT)	±0.2%(5A,100A)
Active energy(clamp CT)	±0.5%(other)
Reactive energy(direct)	±0.1%
Reactive energy(clamp CT)	±0.2%(5A,100A)
Reactive energy(clamp CT)	±0.5%(other)
Phase angle
Range	0°-360°
Error	±0.05°
Frequency
Range	45Hz-65Hz
Pulse output
High frequency output(CH)	--
Low frequency	3600imp/kWh
Pulse ratioPulse ratio	1:01
Output level	5V
Pulse input
Input channel	2
Input level	5-10V
Input frequency	Max.100Hz
Display
Resolution	7"TFT color
Function
Vector diagram	√
Waveform	√
Energy accumulation	√
CT ratio test	√
Local parameter input	√
Wiring emulation	√
Self-calibration	√
Recorder check	√
Data storage	√
Data storage qty	5000
External extend	√
Screen printing	√
Communication port	USB/RS232
Communication with	√
Upload data	√
External mini printer	√
External keyboard	√
Other
Voltage Supply way	External power
Voltage Supply way	test lead power
Voltage Supply	55-480V,50/60Hz
Dimensions(WxHxD)	245x168x67
Weight(kg)	1.5kg

Features and Functions

On-site error measurement of electricity meters 1P2W, 1P3W, 3P3W, 3P4W
High accuracy class 0.05 in direct mode
Can simultaneously test two channel pulses whose pulse constant, modes and pulse quantities can be different
Direct measurement up to 12A/480V
Current measurement with AC clamps from 5A to 2000A
Harmonics up to 51st
Burden measurement of CT & PT
Verification of meter wiring connections
7 inch TFT color screen
Supply via external power, test lead or battery (optional)

Our Advantages

We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
We have a consummate marketing network and we offer a competitive price.
Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.
