YC2000 Handheld Single-Phase Energy Meter Calibrator

Name: YC2000 Handheld Single-Phase Energy Meter Calibrator
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC2000C
Availability: InStock

Brand Name:	GENY
Model Number:	YC2000C
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T
Supply Ability:	300/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 14001

Maximum Test Voltage:

YC2000C

Power Supply:

AC 85V To 265V

Accuracy Classes::

0.2%, 0.3%, And 0.5%

Maximum Test Current:

50A Or 100A (using Current Clamp For Primary Current)

Packaging Details:

Standard packaging

Supply Ability:

300/Year

Highlight:

handheld energy meter calibrator

single-phase energy meter tester

portable reference standard calibrator

Product Description

YC2000 Handheld Single-Phase Energy Meter Calibrator

The YC2000 Handheld Single-Phase Energy Meter Calibrator is specially designed for electric power departments, energy meter manufacturers, metrology and quality inspection agencies, as well as industrial and mining enterprises. It provides reliable, accurate, and convenient on-site testing of single-phase electric meters.

Key Features of YC2000 Handheld Single-Phase Calibrator

High-Resolution Backlit LCD Display: 128×64 pixels with backlight for clear visibility, featuring 16 keys for easy operation and multiple functions.
Multimeter Functionality: Measures voltage, current, active power, reactive power, power factor, phase angle, and frequency of the power grid, functioning as a reliable multimeter.
Comprehensive Data Management: Records meter ID, meter type, customer name, date and time, measurement mode (manual/automatic), and rotation counts in an internal database.
Built-in Database Storage: Stores up to 90 sets of measurement data, including voltage, current, power, phase angle, and error values for thorough analysis.
Online Help Function: Provides user assistance directly on the device for easier operation.
PC Connectivity via RS232: Upload stored data to a PC for further processing and record keeping.

Technical Specifications

Specification	Value
Maximum Test Voltage	260V
Maximum Test Current	50A or 100A (using current clamp for primary current)
Power Supply	AC 85V to 265V
Accuracy Classes	0.2%, 0.3%, and 0.5%
Device Dimensions	185mm × 87mm × 41mm
Device Weight	0.4 kg

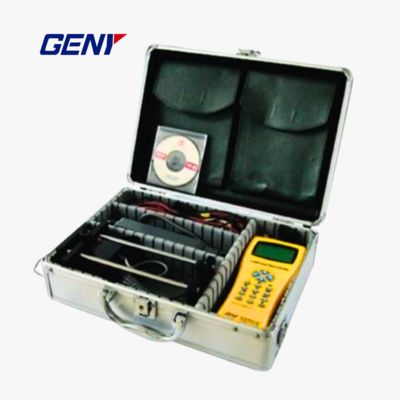

Included Accessories

Current clamp for accurate current measurement
Voltage test leads
Optical sensor heads compatible with both electronic and mechanical meters
Communication cable (optional)
PC software (optional)
Pulse input/output cables
User manual
Carrying case for safe transport and storage
