| Brand Name: | GENY |

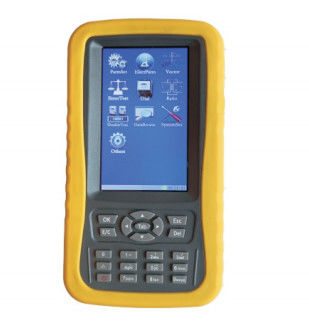

| Model Number: | YC-98S1H |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300/Year |
| Model | YC-98S1H |
| Test Voltage | |
| Range | 0~440V |
| Error | ±0.05% |
| Harmonics | 2nd ~ 51st |
| Test Current | |
| Range (Direct mode) | 0.001~12A |
| Error (Direct mode) | ±0.05% |
| Range (100A Clamp-on CT) | 0.1~120A |
| Error (100A Clamp-on CT) | ±0.2% |
| Harmonics | 2nd ~ 51st |
| Power/Energy Measurement Error | |
| Active (Direct mode) | ±0.05% |
| Active (100A Clamp-on CT) | ±0.1% |
| Reactive (Direct mode) | ±0.1% |
| Reactive (100A Clamp-on CT) | ±0.5% |
| Other Errors | |
| Ratio Measurement | ±0.5% |
| Voltage Influence | <±0.01% |
| Frequency Influence | ≤±0.01% |
| Temperature Influence | <±0.01%/°C |
| 24h Accuracy Influence | ≤±0.01% |
| Harmonic Influence | <±0.01% |
| Phase Angle | |
| Range | -180°~ 180° |
| Error | ±0.1° |
| Frequency | |
| Range | 45 ~ 65Hz |
| Error | ±0.01Hz |
| Pulse Output | |
| High Frequency (Direct mode) | 1.2x10° P/kWh |
| Low Frequency (Direct mode) | 2400P/kWh(kvarh, kVAh) |
| Pulse ratio | 1:01 |
| Output level | 5V |
| Pulse Input | |
| Input Channel | 2 |
| Input Level | 5 - 10V |
| Input Frequency | Max. 5kHz |
| Others | |
| Power Supply | External power, test voltage or battery |
| Display | 5"TFT Touch Screen |
| Dimension (mm) | 210×110×52 |
| Weight (KG) | 0.9 |
