YCPQA-9901 Power Analyzer The Ultimate Transformer Test Equipment

Name: YCPQA-9901 Power Analyzer The Ultimate Transformer Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCPQA-9901
Availability: InStock

Brand Name:	GENY
Model Number:	YCPQA-9901
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Voltage:

0-500V

Voltage Accuracy:

0.1%

Frequency:

42.5-69Hz

Power Accuracy:

Engage Accuracy:

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

YCPQA-9901 Power Analyzer

Ultimate Transformer Test Equipment

Product Description

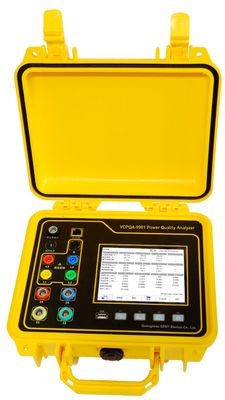

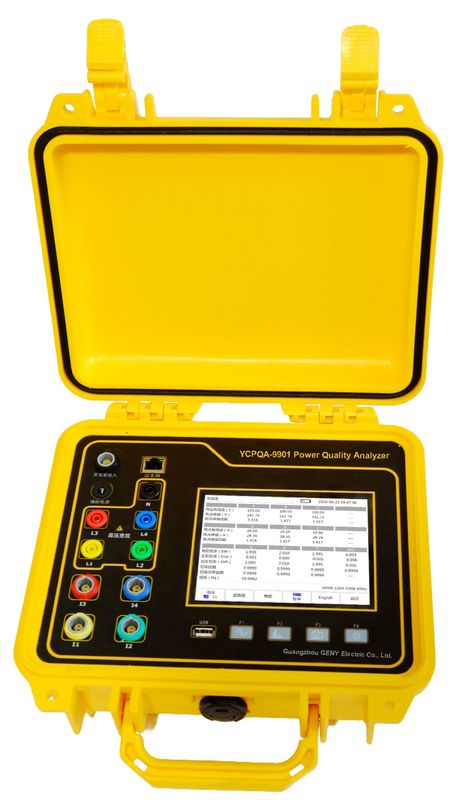

YCPQA-9901 Power Analyzer The Ultimate Transformer Test Equipment

YCPQA-9901 Power Quality Analyzer is used to long-term or short-term on-line monitor voltage, current and power of the power grids, providing reliable monitoring data for making harmonic pollution reduction approaches for the power grid.

Specifications:

Item		Range	Accuracy	Note
Voltage		0-500V	0.10%
Current clamp		1000A/100mV 3000A/100mV	0.10%	clamp
		10A/100mV,100A/100mV	0.50%	flexible
Frequency		42.5-69Hz	0.005Hz
Voltage peak factor		0-2.8	2%
Current peak factor		0-10	2%
3 phase Voltage unbalance (Negative and zero sequence)		0-100%	0.20%
3 phase Current unbalance (Negative and zero sequence)		0-100%	0.50%
Power factor		-1.0000-0-1.0000	±0.005
Displacement power factor		-1.0000-0-1.0000	±0.01
Power			1%
Energy		0-999999999.99999MWh	1%
Harmonic/Inter-harmonic	Relative Voltage Absolute Voltage	0-100% Depend on Current clamp and ratio	±0.1%±n×0.1% (±0.4%,relative to r%)±5%±5
	Relative Voltage Absolute Voltage	0-100% 0.00-500Vrms	Uh≥1%UN:±5%Uh Uh＜1%UN: 0.05%UN
	Relative Power Absolute Power	0-100% Depend on Current clamp and ratio	±n×2% ±5%±n×2%±10
	Phase angle	0°-355.9°	±n×1.5%	±0.1%
	Frequency	0-8800Hz	1Hz
Half-wave RMS		0.5-500Vrms	±0.2%
Flicker		0-20	5%

Main function

1.With various operation interfaces, YCPQA-9901 can measure 3P3W and 3P4W Voltage, Current, Frequency, Phase angle, Power factor, Active power.

2.Reactive power, Apparent power. Real-time measure and analyze harmonics, and 2nd-63rd harmonics content and distortion also can be measured;

3. Display the real-time waveform of each phase;

4.Display real-time vector diagram, easy to check the wiring on-site, can identify wiring automatically: 5.Measure various power quality phenomenons, record, and analyze power quality events.

Main features

1.5.6' inch, 640×480 dot-matrix LCD, displays the operation hint and measured data;

2.Large capacity Li-battery, the continuous working time more than 7 hours;

3.YCPQA-9901 is fully compliant with the IEC 61000-4-30, EN 50160:2004

4.Real-time measure and record basic electric parameters, harmonic, flicker, Voltage/Current unbalance ratio, swell/dip, over-voltage, under-voltage, peak voltage:

5.Set various triggering conditions to record failure waves and events:

6.Self-protection function, safe and reliable

7.The weight of the machine is less than 5Kg, compact and lightweight, easy to carry:

8.Support calibrating by user self.
