750V/80A Accuracy 0.2% Portable Transformer Test Equipment For Capacity

Transformer Capacity and Characteristic Test Instrument

750V/80A Accuracy 0.2% Portable Transformer Test Equipment for Capacity and Loss Measurement for transformer ratio test

Product Description

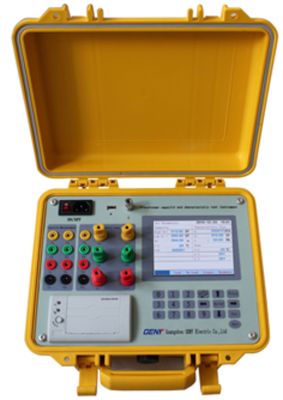

YCTC-9901Transformer capacity and characteristic test instrument is a digital, portable instrument designed for the measurement of distribution transformer's capacity,loss and other parameters.

The test instrument composed by a rechargeable battery (built).DC-AC inverter (invert the DC into a three-phase, 50Hz AC voltage),6-way exchange of sampling and A / D converter, DSP, keyboard.LCD display, and a Micro-printer.

YCTC-9901 Transformer capacity characteristic test instrument integrated the function of off-line measurement of distribution transformer capacity, no-oad current, no-oad loss, load loss,impedance voltage and a series of frequency parameters.

YCTC-9901 Transformer capacity characteristic test instrument has the Features of small, convenient operation, accurate measurementand good stability.

Function:

• Test the capacity of various types of distribution transformers.
• Test various types of transformer no-load current,no-load loss,short-circuit voltage, lad loss,and other parameters.
• Test voltage is automatically adjusted (no-load test with non-rated voltage), the current correction (load test with non-rated current), the waveform distortion correction (voltage waveform distortion under no-loadtest),frequency correction (test source frequency impedance Voltage and no-load loss correction), the reference temperature correction.
• Indicate the existence of local defects in the transformer's magnetic circuit according to single-phase transformer no-load test results
• Indicate if the load test power supply voltage waveform is qualified.
• Real-time measurement of six signals 2-51 harmonic histogram.
• Wide range of limited measurements.
• Color TFT,high brightness, wide temperature range liquid crystal displays, offering a full English menu and operating instruction.
• Built-in rechargeable high-energy batteries.
• Built-in micro printer.

Specifications:

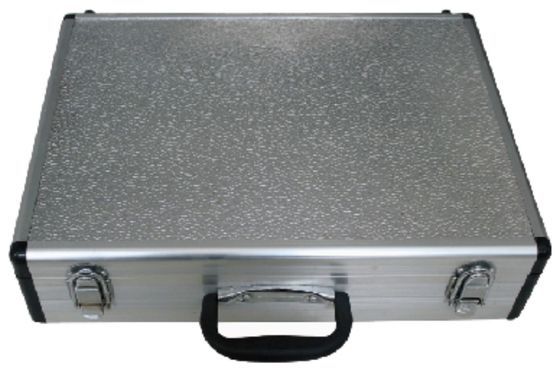

YCTC-9901Transformer capacity characteristic test instrument includes main chassis and an accessory box The main case is made of Moisture-proof,waterproof,shock resistance rubber and plastic, The accessory box is made of aluminum, used to holding test lines,clamps and other accessories.
