Stationary Power Source
Created with Pixso.

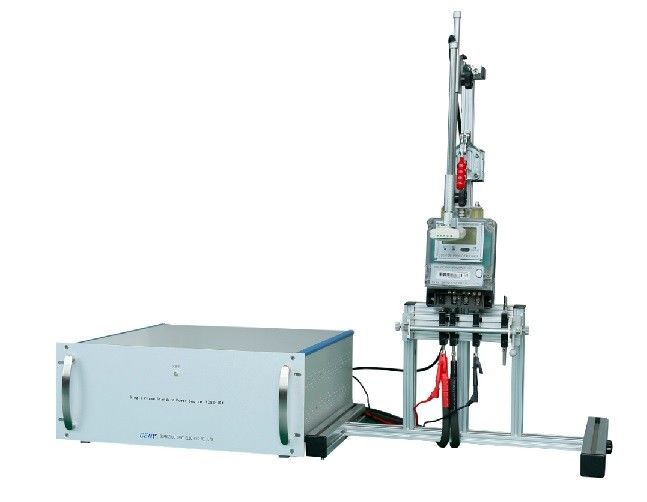

All-in-One Power Solution Stationary Power Source With High Precision Stability

All-in-One Power Solution Stationary Power Source With High Precision Stability

Brand Name: GENY
Model Number: YCSS-101
MOQ: 1
Price: negotiate rates
Payment Terms: T/T, L/C, D/P, T/T
Supply Ability: 5 sets / 1 months
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Test Voltage Output:
0V-480V
Power Of The Voltage Output:
Max.25VA
Test Current Output:
1mA-120A
Phase Angle Range:
0 -- 360°
Frequency:
45Hz-65Hz
Value:
High Performance, Low Cost
Control:
Manual Or PC
Integration:
Portable Test System
Packaging Details:
Plywood cases
Supply Ability:
5 sets / 1 months
Highlight:

All-in-One Stationary Power Source

,

High Precision Stationary Power Source

,

High Precision Stability Stationary Power Source

Product Description

All-in-One Power Solution Stationary Power Source with High Precision Stability

Specifications

Voltage
Test voltage output 0V-480V Resolution 1mV
Power of the voltage output Max.25VA Setting accuracy 0.05% at 50-400V
Stability 0.03%/h (integration time 150s) Harmonics 2nd-41st free programmable
Distortion factor <0.2% for linear resistance load
Current
Test current output 1mA-120A Setting accuracy 0.05% at 1mA-120A
Power of the voltage output Max.120VA Stability 0.003%/h (Integration time 150s)
Resolution 0.2mA Distortion factor <0.2% for linear resistance load
Harmonics 2nd-21st free programmable
Phase angle Frequency
Range 0°-360° Range 45Hz-65Hz
Resolution 0.001° Resolution 0.0001Hz
Setting accuracy 0.005°
Pulse output
High frequency output >20A FH=10^7; >2A FH=10^8; >0.2A FH=10^9
Pulse Input
Input channel 2
Input frequency Max.100kHz
Other
Voltage Supply 220V±10% 50/60Hz±2Hz Dimensions (W×H×D) (mm) 484x184×543
Ambient temperature -10°C-+40°C Weight (kg) 15
Relative humidity 35%-85% Conformity CE conform



Features & Functions

  • All-in-One Power Solution: Our device seamlessly integrates a precision reference standard with a robust power source, making it an indispensable portable test system for your testing needs.



  • Unbeatable Value: Enjoy exceptional performance at a fraction of the cost, delivering a high performance-price ratio that sets a new standard in the industry.



  • Versatile Output Capabilities: With an impressive voltage range from 0V to 480V and a current range from 1mA to 120A, this device is designed to handle a wide array of testing scenarios with ease.



  • Advanced Calibration Features: Streamline your calibration process with the ability to input two pulse signals for synchronized meter calibration or focus on a single meter's active and reactive power calibration, enhancing accuracy and efficiency.



  • Intuitive Control Options: Whether you prefer the tactile feedback of a manual keyboard or the convenience of automated PC operation, our device offers user-friendly control options to suit your workflow.



  • Seamless Integration: Connect effortlessly with your existing systems through internet connectivity and an RS 232 port, ensuring compatibility and integration with your PC for enhanced communication and control.
