| Brand Name: | GENY |
| Model Number: | YCS-101 |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T, L/C, D/P, T/T |
| Supply Ability: | 5 sets / 1 months |

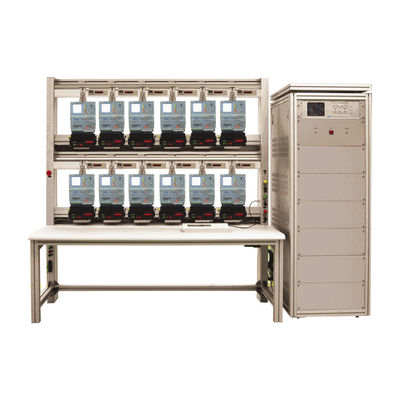

Three Phase Energy Stationary Power Source with 1500VA Current Output and High Precision
| YCS-103-250 | YCS-103-600 | YCS-103-1200 | YCS-103-2500 | |
| Voltage | ||||
| Test voltage output (Phase-Neutral) | 3×(24V – 288V) or customized | |||
| Power of the voltage output | 3×100VA | 3×250VA | 3×500VA | 3×1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | < 0.01% | |||
| Distortion factor | < 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Current | ||||
| Test current output | 3×(1mA – 100A) | |||
| Power of the current output | 3×150VA | 3×350VA | 3×750VA | 3×1500VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | < 0.01% | |||
| Distortion factor | < 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Phase angle | ||||
| Range | 0 -- 360° | |||
| Resolution | 0.01° | |||
| Setting accuracy | 0.1° | |||
| Frequency | ||||
| Range | 45Hz – 65Hz | |||
| Resolution | 0.01Hz | |||
| Voltage Supply |
3×220/380V±10% or customized 50/60Hz±2Hz |
|||
| Ambient temperature | -10°C -- +40°C | |||
| Relative humidity | 35% -- 85% | |||
1. Aluminum alloy materials, light and strong, prevent corrosion High accuracy and high stability output

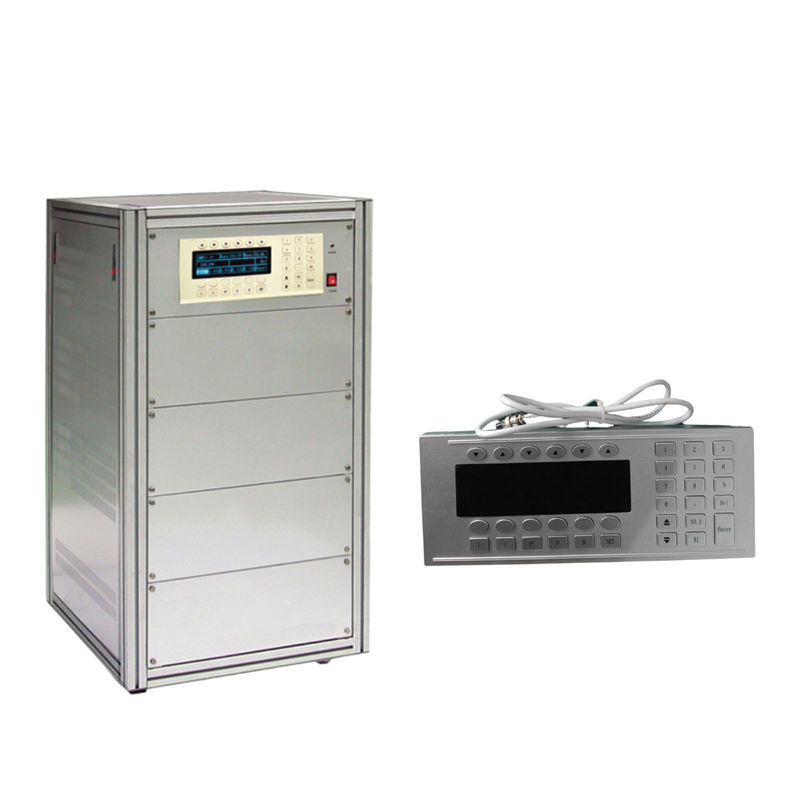

2. With keyboard for manual operation (optional).
3. 2nd – 21st harmonic, output amplitude and degree can be programmed.
4. It’s easy for operation by PC control suit.
5. With RS232 interface for automatic operation
6. With the protect function of overload, short voltage circuit and open current circuit.
Utilized by governmental metrology bureaus for precise measurement and calibration purposes.
Trusted by national utility companies for accurate monitoring and management of energy distribution networks.
Preferred by leading energy meter manufacturers for integration into their advanced metering solutions.
Outstanding power output capabilities, including a maximum voltage power of 1000VA and current power of 1500VA, ensuring robust performance in various applications.
Renowned for its unwavering commitment to product excellence, adhering to rigorous quality standards throughout the manufacturing process.
Distinguished by its exceptional power stability, providing reliable operation even in demanding environments and fluctuating conditions.
Boasting a distortion factor of less than 0.3% for linear resistance loads, ensuring accurate and precise measurements without compromising efficiency or reliability.
