Stationary Power Source
Created with Pixso.

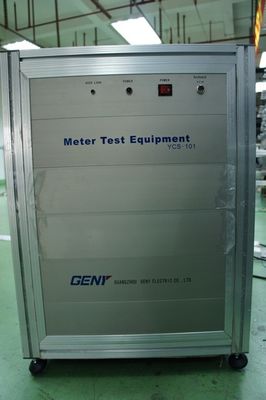

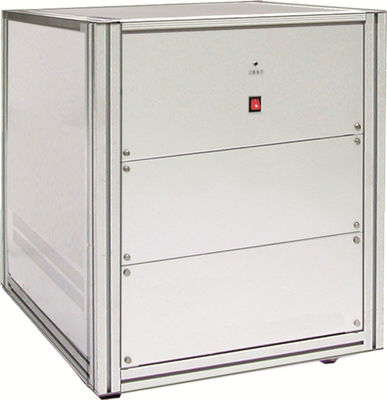

Aluminum Single Phase Stationary Power YCS-101 Stationary Electricity

Aluminum Single Phase Stationary Power YCS-101 Stationary Electricity

Aluminum Single Phase Stationary Power YCS-101 Stationary Electricity

Brand Name: GENY
Model Number: YCS-101
MOQ: 1
Price: negotiate rates
Payment Terms: T/T, L/C, D/P, T/T
Supply Ability: 5 sets / 1 months
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Test Voltage Output:
24V – 288V Or Customized
Power Of The Voltage Output:
100VA/250VA/500VA/1000VA
Test Current Output:
1mA – 100A
Phase Angle Range:
0 -- 360°
Relative Humidity:
35% -- 90%
Ambient Temperature:
-10°C -- +40°C
Voltage Supply:
220V±10% Or 50/60Hz±2Hz Or Customized
Packaging Details:
Plywood cases
Supply Ability:
5 sets / 1 months
Highlight:

Aluminum Single Phase Stationary Power

,

Stationary Power YCS-101

,

YCS-101 Stationary Electricity

Product Description

Aluminum Structure Single Phase Stationary Power System, Extremely Stable Power Output Better Than 0.005% per Hour

Aluminum Single Phase Stationary Power System Unparalleled Stability with <0.005% Hourly Fluctuation

Technical Specifications:

  YCS-101-250 YCS-101-600 YCS-101-1200 YCS-101-2500
Voltage Source
Test voltage output (Phase-Neutral) 24V – 288V or customized
Power of the voltage output 100VA 250VA 500VA 1000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd – 21st free programmable
Current Source
Test current output 1mA – 100A
Power of the current output 150VA 350VA 750VA 1500VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd – 21st free programmable
Phase angle
Range 0 -- 360°
Resolution 0.01°
Setting accuracy 0.1°
Frequency
Range 45Hz – 65Hz
Resolution 0.01Hz

Voltage Supply 220V±10% or 50/60Hz±2Hz or customized
Ambient temperature -10°C -- +40°C
Relative humidity 35% -- 90%

Description:

  • Delivers unparalleled precision and steadfast stability in output sourcing.
  • Seamlessly integrates with automated systems via the RS232 interface, ensuring effortless operation.
  • Offers the flexibility of manual operation with an optional keyboard for user convenience.
  • Empowers users with programmable control over output parameters, encompassing harmonics from the 2nd to the 21st, as well as customizable amplitude and phase settings.
  • Engineered using lightweight yet durable aluminum alloy materials, providing both strength and resistance to corrosion for extended longevity.
  • Ensures operational safety with built-in protection mechanisms against overload, short-circuit voltage, and open-circuit current, guaranteeing reliability in various working conditions.
  • Simplifies control and management through a comprehensive PC control software suite, designed for intuitive operation, and further extends functionality with support for secondary software development.

Applications:

  • Nation-level utility companies
  • Governmental bureaus of metrology
  • Power energy meter manufacturers

Primary Competitive Advantages:

  • High quality product
  • High power output (max. voltage power: 1000VA, current power: 1500VA)
  • Extremely high power stability
  • Distortion factor less than 0.3% for linear resistance load
