| Brand Name: | GENY |
| Model Number: | YC2000A |
| Payment Terms: | T/T |
| Supply Ability: | 100/Year |
| Application Conditlons and Requirements | ||||
| Environment | Safety | |||
| Operation Temperature | Relative Humidity | Altitude | IP Class | Conformity |
| -25°C-+45°C | 40%--95% | <2500m | IP51 | CE conform |

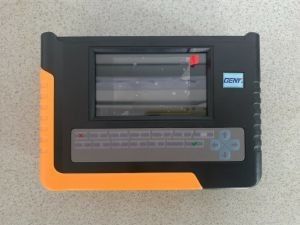

| Type | YC-2000A | |||
| Test voltage | ||||
| Range | 10-420V | |||
| Error | ±0.1% | |||
| Harmonic | 2nd-51st | |||
| Test current | ||||
| Range(direct connection) | -- | |||
| Range(clamp CT) | 100A | |||
| 5A,500A,1000A,2000A | ||||
| (option) | ||||
| Error(direct connection) | -- | |||
| Error(clamp CT) | ±0.2%(5A,100A) | |||
| ±0.5%(other) | ||||
| Harmonic | 2nd-51st | |||
| Power measure error | ||||
| Active power(direct connection) | -- | |||
| Active power(clamp CT) | ±0.3%(5A,100A) | |||
| ±0.5%(other) | ||||
| Reactive power(direct) | -- | |||
| Reactive power(clamp CT) | ±0.5% | |||
| Energy measure error | ||||
| Active energy(direct) | -- | |||
| Active energy(clamp CT) | ±0.3%(5A,100A) | |||
| ±0.5%(other) | ||||
| Reactive energy(direct) | ||||
| Reactive energy(clamp CT) | ±0.5% | |||
| Phase angle | ||||
| Range | 0°-360° | |||
| Error | ±0.1 | |||
| Frequency | ||||
| Range | 45Hz-65Hz | |||
| Pulse output | ||||
| High frequency output(CH) | -- | |||
| Low frequency | 1000imp/kWh | |||
| Pulse ratioPulse ratio | 1:01 | |||
| Output level | 5V | |||
| Pulse input | ||||
| Input channel | 1 | |||
| Input level | 5-10V | |||
| Input frequency | Max.100Hz | |||
| Display | ||||
| Resolution | 3.5"TFT color(320x240) | |||
| Function | ||||
| Vector diagram | ||||
| Waveform | ||||
| Energy accumulation | ||||
| CT ratio test | ||||
| Local parameter input | ||||
| Wiring emulation | ||||
| Self-calibration | ||||
| Recorder check | ||||
| Data storage | ||||
| Data storage qty | 1000 | |||
| External extend | ||||
| Screen printing | ||||
| Communication port | Rs232 | |||
| Communication with | ||||
| Upload data | ||||
| External mini printer | ||||
| External keyboard | ||||
| Other | ||||
| Voltage Supply way | External power | |||
| test lead power | ||||
| Voltage Supply | 45-420V,50/60Hz | |||
| Dimensions(WxHxD) | 190x140x50 | |||
| Weight(kg) | 0.7kg | |||
Guangzhou Yangcheng Science & Technology Enterprises Co., Ltd. was established in 1987. We are a multi-industry enterprise group with several hundred million RMB of annual sales in the industries of electrical measuring equipment, industrial and domestic automation engineering, biology engineering, and business trade. We have 464 employees today, among which 156 staffs engaged in the manufacture and business of electrical measuring equipment.
In 2002, the electric measurement department of the company separated and set up a wholly-owned subsidiary Guangzhou GENY Electric Co., Ltd. It is a Hi-Tech company specialized in electricity measuring equipment.
Nowadays, we are one of the biggest and leading manufacturers of electrical measuring equipment in China. We have sold more than 7000(Seven Thousand) sets of energy meter test benches and more than 10000(Ten Thousand) sets of portable calibrators in the China market so far.
