Single Phase Reference Standard Meter YC2000C Meter Testing Equipment

Name: Single Phase Reference Standard Meter YC2000C Meter Testing Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC2000C
Availability: InStock

Brand Name:	GENY
Model Number:	YC2000C
Payment Terms:	L/C, T/T
Supply Ability:	300/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 14001

Model NO.:

YC2000C

After-sales Service:

1 Year

Warranty:

1 Year

Application:

Electromagnetic Instrument

Power:

Electricity

Voltage Output:

15-300V(R.M.S)

Current Output:

2mA-100A(R.M.S)

Thermocouple (TC):

Resistance-Temperature Detector (RTD):

LCD Display:

With LCD Display

Customized:

Customized

Weight:

0.25kg

Dimension(Lxwxh):

215 Mmx 60 Mm X 30 Mm

Trademark:

GENY

Transport Package:

Carton

Specification:

500 Mm X120 Mm X80 Mm

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

300/Year

Highlight:

Single Phase Reference Standard Meter

Reference Standard Meter YC2000C

YC2000C Meter Testing Equipment

Product Description

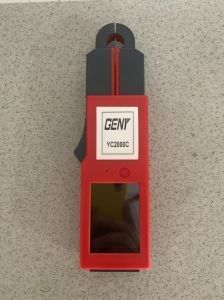

Single Phase Reference Standard Meter YC2000C High Stability and Portability Combined

Product Description

Single/Three Phase Electric Energy Meter Test Bench
Single/Three Phase Portable Standard Meter
Current clamp and meter combined together, colorful and touch-screen display;
One Li-battery can continuously working 12 hours;
Wide voltage,current measurement range, voltage range:15-300V,current range:2mA-100A;
Display all the measuring parameters in one screen;
Current clamp has automatic conpensation function, 0.2%class accuracy;
Current clamp has automatic calibration function;
Integration design of the meter and clamp;
Automatically record and save 999 groups calibrate data;
16bit high accuracy AD switch 32 bits ARM processor core
Micro-multifunction optic sampler;
Manual/automatic test inductive single phase meters;
Manual/automatic test electric single phase meters;
Measure virtual value of alternating voltage(15~300Vrms);
Measure virtual value of alternating current(50mA~100Arms);
Test parameters: active power, phase angle of voltage and current, frequency and etc.
Automat IC store testing data, and 999 group test results can be saved.

Specification

Conditions and requirement of use
Environment				Power		Safety
Temperature	Relative humidity	Altitude	Voltage	Frequency range	Waveform distortion	IP Class	Conformity
-10°C-+55°C	5%-95%RHD	<2500m	15~300V	45Hz-65Hz	<0.2%	IP51	CE conform

Measure Scope	Voltage:			15-300V(r.m.s)
	Current:			2mA-100A(r.m.s)
	Phase angle:			0~359.99°
	Frequency:			45~65Hz

Accuracy of measurement	Voltage & current:			better than 0.2%
	Phase angle:			better than 0.05°
	Frequency:			better than 0.005 Hz
	Actlve power:			better than 0.5%
	Active power energy:			better than 0.5%

Dimension(LxWxH)	Main			215 mmx60 mmx30 mm

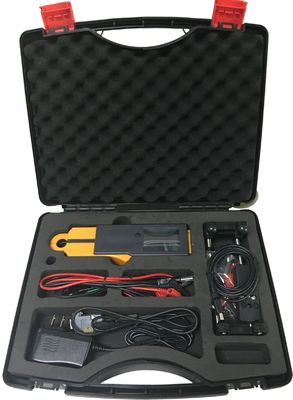

	Auxiliary			500 mmx120 mmx80 mm

Weight	0.25 kg			3 kg

Our Advantages

We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
We have a consummate marketing network and we offer a competitive price.
Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.
