Yc98S1 Electrical Tester Calibrator GENY Three Phase Energy Meter

Name: Yc98S1 Electrical Tester Calibrator GENY Three Phase Energy Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC98S1
Availability: InStock

Brand Name:	GENY
Model Number:	YC98S1
Payment Terms:	L/C, T/T, D/P
Supply Ability:	300/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC98S1

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Continuous Wave

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Carton

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

300/Year

Highlight:

Yc98s1 Electrical Tester Calibrator

Electrical Tester Calibrator GENY

GENY Three Phase Energy Meter

Product Description

Yc98s1 Three Phase Electronic Meter Your Portable Solution for Precise Measurements

Product Description

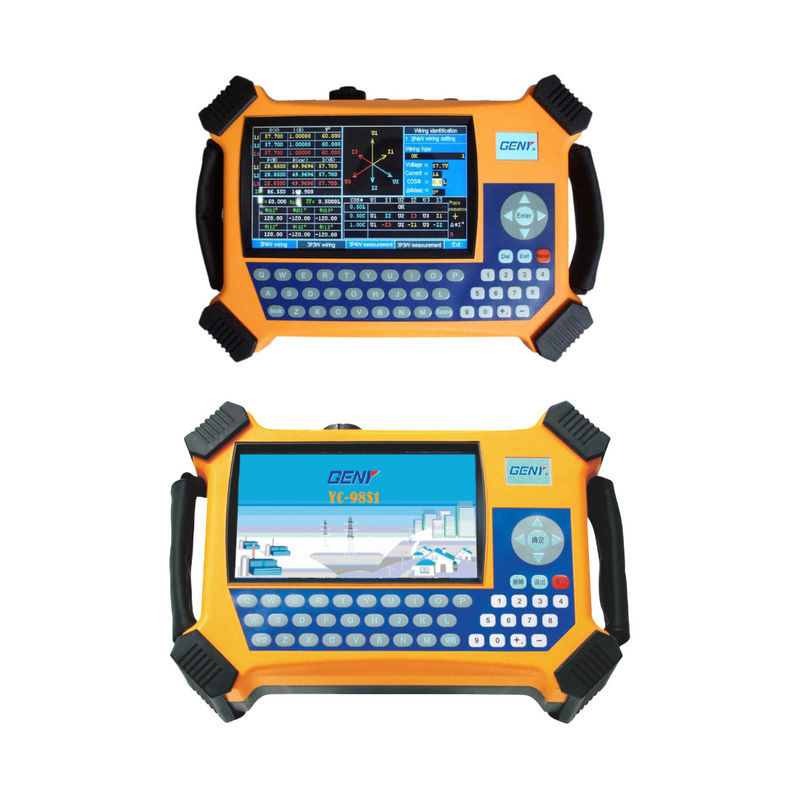

YC98S1 Portable Three Phase Standard Meter

Features & Functions

0.05% High accuracy(direct connection)
With 7 inch 480x234 dot TFT color screen
Wide voltage supply range:55V~480V
Connection with current clamp: standard 100A.
From 5A to 2000A current as option.
Two ways for power supply: external AC power supply or test lead power supply

Product Parameters

Application Conditlons and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25°C-+45°C	40%--95%	<2500m	IP30	CE conform

Type	YC-98S1
Test voltage
Range	30V-480V
Error	±0.05%
Harmonic	2nd-51st
Test current
Range(direct connection)	0.05-10A
Range(clamp CT)	100A
	5A,500A,1000A,2000A
	(option)
Error(direct connection)	±0.05%
Error(clamp CT)	±0.2%(5A,100A)
Error(clamp CT)	±0.5%(other)
Harmonic	2nd-51st
Power measure error
Active power(direct connection)	±0.05%
Active power(clamp CT)	±0.2%(5A,100A) ±0.5%(other)
Reactive power(direct)	±0.1%
Reactive power(clamp CT)	±0.2%(5A,100A)
Reactive power(clamp CT)	±0.5%(other)
Energy measure error
Active energy(direct)	±0.05%
Active energy(clamp CT)	±0.2%(5A,100A)
Active energy(clamp CT)	±0.5%(other)
Reactive energy(direct)	±0.1%
Reactive energy(clamp CT)	±0.2%(5A,100A)
Reactive energy(clamp CT)	±0.5%(other)
Phase angle
Range	0°-360°
Error	±0.05°
Frequency
Range	45Hz-65Hz
Pulse output
High frequency output(CH)	--
Low frequency	3600imp/kWh
Pulse ratioPulse ratio	1:01
Output level	5V
Pulse input
Input channel	2
Input level	5-10V
Input frequency	Max.100Hz
Display
Resolution	7"TFT color
Function
Vector diagram	√
Waveform	√
Energy accumulation	√
CT ratio test	√
Local parameter input	√
Wiring emulation	√
Self-calibration	√
Recorder check	√
Data storage	√
Data storage qty	5000
External extend	√
Screen printing	√
Communication port	USB/RS232
Communication with	√
Upload data	√
External mini printer	√
External keyboard	√
Other
Voltage Supply way	External power
Voltage Supply way	test lead power
Voltage Supply	55-480V,50/60Hz
Dimensions(WxHxD)	245x168x67
Weight(kg)	1.5kg
Certifications

Applications

1.Nation-Level Utility Companies

Our product is the ideal solution for national-level utility companies, providing the precision and reliability needed for energy management and distribution.

2.Governmental Bureaus of Metrology

Trusted by governmental metrology bureaus for its high-accuracy measurements, our product is essential for maintaining standards and ensuring regulatory compliance.

3.Big Energy Meter Manufacturers

Large manufacturers of energy meters rely on our product for quality assurance, ensuring that their products meet the highest standards of performance and accuracy.

Primary Competitive Advantages

1.High-Quality Product

We deliver a product of exceptional quality, built with premium components to ensure longevity and consistent performance.

2.High Stability

Our equipment is engineered for high stability, delivering reliable results even under varying conditions and demanding workloads.

3.Friendly Interface

With a user-friendly interface, our product simplifies operation, making it accessible to users of all experience levels and reducing the time needed for training.

4.Convenient Operation

Designed for convenience, our product streamlines the operational process, saving time and effort, and enhancing overall efficiency.
