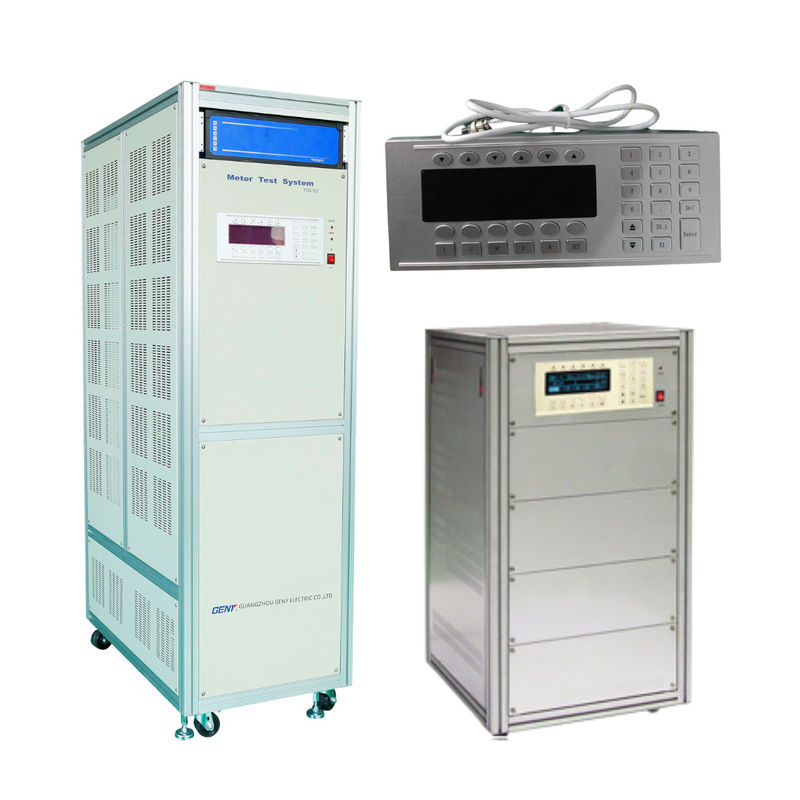

ISO CE Three Phase Power Cabinet Ycs-103-250 9CBM Capacity

Name: ISO CE Three Phase Power Cabinet Ycs-103-250 9CBM Capacity
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCS-103
Availability: InStock

Brand Name:	GENY
Model Number:	YCS-103
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YCS-103-250

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Continuous Wave

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

1.9CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

CE Three Phase Power Cabinet

ISO Three Phase Power Cabinet

Ycs-103-250

Product Description

Ycs-103-250 Three Phase Power Cabinet with Digital Display and 9CBM Capacity

Product Parameters

	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 288V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	3×(1mA – 100A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Technical Specifications:

Offers three separate outputs for voltage and current signals, suitable for testing three-phase and single-phase meters.
Delivers high-accuracy and stable signal outputs.
Includes an RS232 interface for automatic control operations.
Manual operation is available as an optional feature with a keypad.
Adjustable output for harmonics ranging from the 2nd to the 41st, with programmable amplitude and phase.
Made from aluminum alloy for durability and resistance to corrosion while being lightweight.
Incorporates safety features such as overload protection, low voltage short circuit protection, and open circuit protection for currents.
Features a straightforward control software interface for ease of use.
The power source is EU health and safety standard compliant, marked with a CE certification.

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. High power output (max. voltage power: 1000VA, current power: 1500VA)

3. Extremely high power stability

4. Distortion factor less than 0.3% for linear resistance load
