| Brand Name: | GENY |

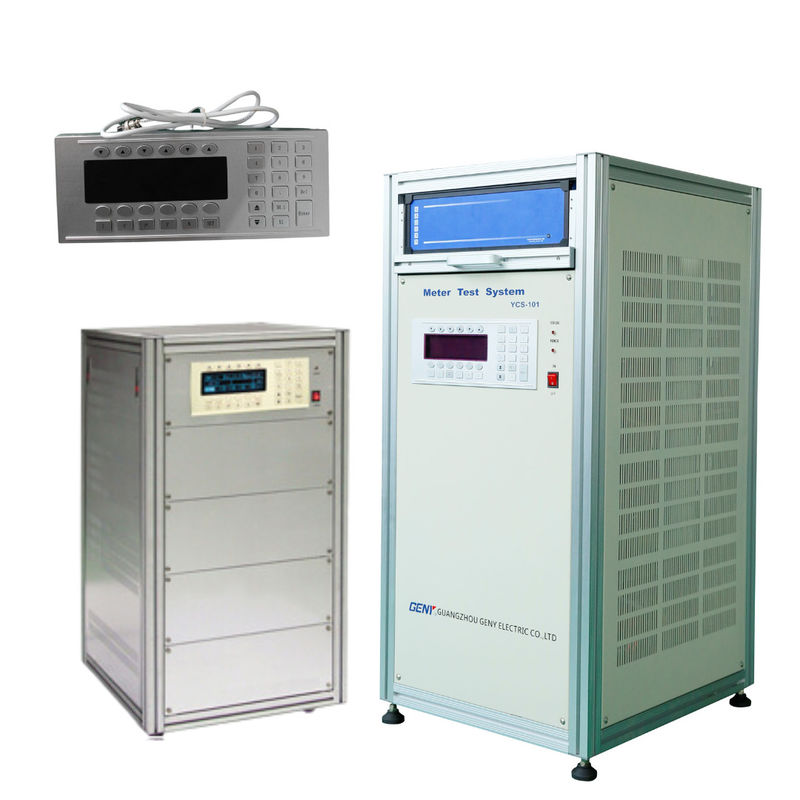

| Model Number: | YCS-101 |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100/Year |
| YCS-101-250 | YCS-101-600 | YCS-101-1200 | YCS-101-2500 | |
| Voltage | ||||
| Test voltage output (Phase-Neutral) | 24V – 288V or customized | |||
| Power of the voltage output | 100VA | 250VA | 500VA | 1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | < 0.01% | |||
| Distortion factor | < 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Current | ||||
| Test current output | 1mA – 100A | |||
| Power of the current output | 150VA | 350VA | 750VA | 1500VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | < 0.01% | |||
| Distortion factor | < 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Phase angle | ||||
| Range | 0 -- 360° | |||
| Resolution | 0.01° | |||
| Setting accuracy | 0.1° | |||
| Frequency | ||||
| Range | 45Hz – 65Hz | |||
| Resolution | 0.01Hz | |||
| Voltage Supply |
220V±10% or 50/60Hz±2Hz |
3×220/380V±10% or customized 50/60Hz±2Hz |
||
| Ambient temperature | -10°C -- +40°C | |||
| Relative humidity | 35% -- 85% | |||
1. High accuracy and high stability output
2. With RS232 interface for automatic operation
3. With keyboard for manual operation (optional).
4. 2nd – 21st harmonic, output amplitude and degree can be programmed.
5. Aluminum alloy materials, light and strong, prevent corrosion.
6. With the protect function of overload, short voltage circuit and open current circuit.
7. Simple control software, easy for operation
1.National Utility Organizations:
Leading utility companies operating at the national level, responsible for the provision and management of essential services.
2.Regulatory Metrology Authorities:
Governmental bodies dedicated to metrology, ensuring the accuracy and reliability of measurements through regulatory oversight and standards enforcement.
3.Major Energy Metering Equipment Producers:
Prominent manufacturers in the energy metering industry, known for producing high-quality equipment used in energy consumption monitoring and management.
1. High quality product
2. High power output (max. voltage power: 1000VA, current power: 1500VA)
3. Extremely high power stability
4. Distortion factor less than 0.3% for linear resistance load
