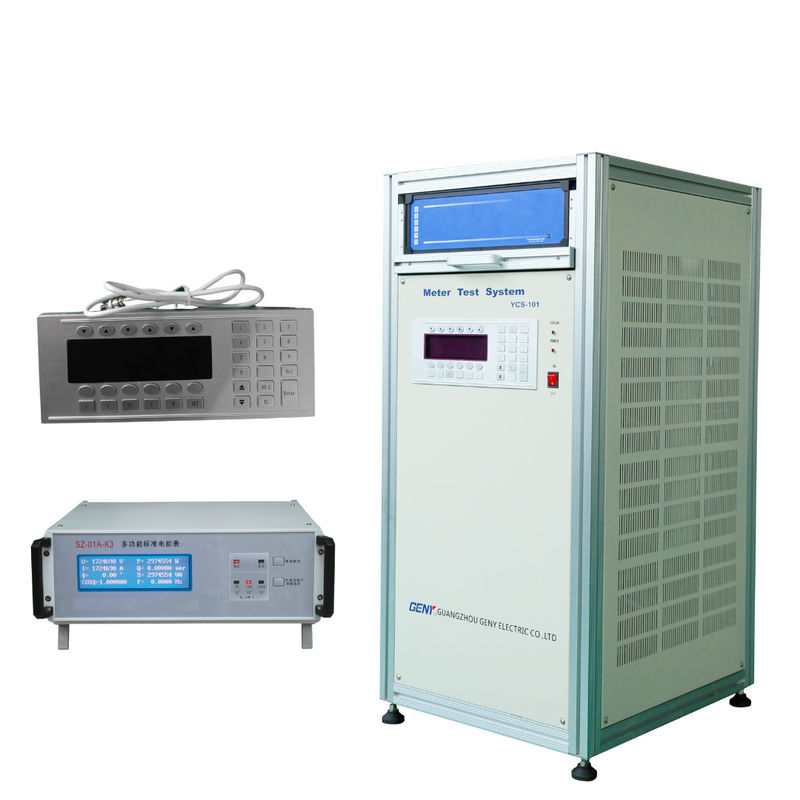

Ycs-101-250 Stationary Power Cabinet 0.672CBM Direct Connected

Name: Ycs-101-250 Stationary Power Cabinet 0.672CBM Direct Connected
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCS-101
Availability: InStock

Brand Name:	GENY
Model Number:	YCS-101
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YCS-101-250

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Single-phase

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Pulse Peak

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

0.672CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

Ycs-101-250

Stationary Power Cabinet

Direct Connected Power Cabinet

Product Description

0.672CBM Direct Connected Ycs-101-250 Stationary Power Cabinet with and Installation

Product Parameters

Application Conditions and Requirements
Environment			Power Requirement	Safety
Operation Temperature	Humidity	Altitude	Voltage Supply	IP Class	Conformity
-10ºC--+40ºC	35%--85%	<2500m	3x220/380V±10%(or customized)	IP30	CE conform
			50/60Hz±2Hz

Type	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Voltage
Test voltage output(Phase-Neutral)	24V-300 V or customized
Power of the voltage output	Max.100VA	Max.250VA	Max.500VA	Max.1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Current
Test current output	1mA-120A/200A
Power of the current output	Max.250VA	Max.500VA	Max.1000VA	Max.2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Phase angle
Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Product Description

YCS-101 Single Phase Power Source

Output separate voltage and current signal, suit for single phase energy meter.
High accuracy and high stability output.
With RS232 interface for automatic operation.
With keyboard for manual operation(optional).
2nd-41st harmonic,output amplitude and degree can be programmed.
Aluminum alloy material,light and strong, prevent corrosion.
With the protect function of overload, short voltage circuit and open current circuit.
Simple control software,easy for operation.
The power source is accredited to conforms to EU health and safety standards with CE certificates

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. High power output (max. voltage power: 1000VA, current power: 1500VA)

3. Extremely high power stability

4. Distortion factor less than 0.3% for linear resistance load
