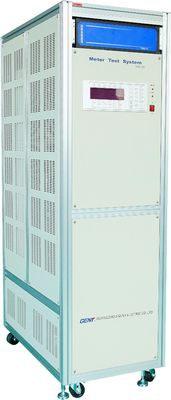

Customizable Voltage Output Stationary Power Source 3000VA Power Output

Brand Name:	GENY
Model Number:	YCSS-103
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Brand:

GENY

Model:

YCSS103

Certification:

ISO, CE

HS Code:

9030849000

Origin:

China

Power Output:

3000VA

Type:

Power Source

Run Time:

1000 Hrs

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

Voltage Output Stationary Power Source

Customizable Stationary Power Source

3000VA Stationary Power Source

Product Description

Three Phase Stationary Power Systems, High Stability Power Source

Customizable Voltage Output Stationary Power Source Three Phase Power Systems For Utility Companies

High Stability Customizable Voltage Output Stationary Power Source for Utility Companies

Description:

This is a description of a customizable voltage output stationary power source for utility companies.

It is designed to output three separate voltage and current signals, making it suitable for testing both three-phase and single-phase energy meters.
The power source is highly accurate and stable, and includes an RS232 interface for automatic operation.
The keyboard for manual operation (optional)
allows programming of the output amplitude and degree for the 2^nd-41^stharmonic.
The material is made of aluminum alloy, which is both lightweight and strong, preventing corrosion.
The device has overload protection, short voltage circuit protection, and open current circuit protection.
The control software is simple and easy to operate.
The power source conforms to EU health and safety standards and has CE certificates.

Technical Parameters:

Model	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 480V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 41^st free programmable
Current
Test current output	3×(0.3mA – 200A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 41^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	40Hz – 70Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Applications:

1. national utility companies

2. Governmental bureaus of metrology

3. large energy meter manufacturers

Primary Competitive Advantages:

High-quality product.
High power output (maximum voltage power: 2000VA, current power: 3000VA).
The power stability is extremely high, ranging from 20 to 50 ppm.
Additionally, the distortion factor for linear resistance load is less than 0.3%.
