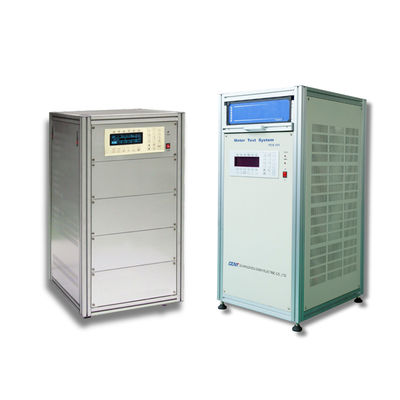

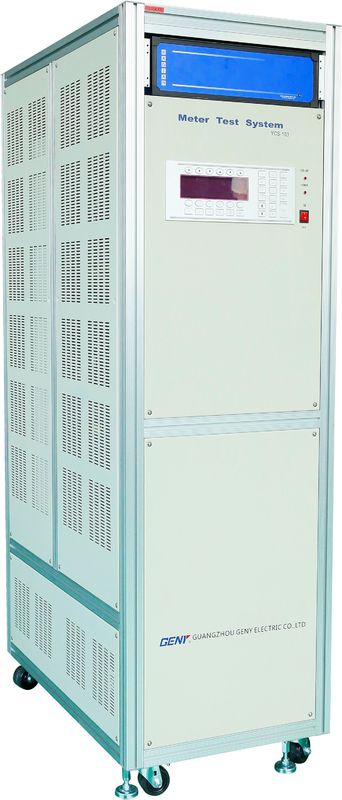

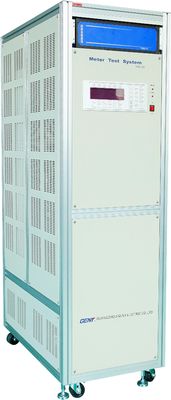

Stationary Power Source Three Phase Power Systems GENY YCSS-103

Name: Stationary Power Source Three Phase Power Systems GENY YCSS-103
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCSS-103
Availability: InStock

Brand Name:	GENY
Model Number:	YCSS-103
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Brand:

GENY

Model:

YCSS103

Certification:

ISO, CE

HS Code:

9030849000

Origin:

China

Power Output:

3000VA

Type:

Power Source

Run Time:

1000 Hrs

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

Stationary Power Source Three Phase

Three Phase Power Systems GENY

YCSS-103 Three Phase Power System

Product Description

Three Phase Stationary Power Systems, High Stability Power Source

Customizable Voltage Output Stationary Power Source Three Phase Power Systems For Utility Companies

Description:

Output 3 ways of separate voltage and current signal, suit for testing three phase and single phase energy meter.
High accuracy and high stability output
With RS232 interface for automatic operation
With keyboard for manual operation(optional)
2^nd-41^st harmonic, output amplitude and degree can be programmed
Aluminum alloy material, light and strong prevent corrosion
With the protect function of overload, short voltage circuit and open current circuit
Simple control software, easy for operation
The power source is accredited to conforms to EU health and safety standards with CE certificates

Technical Specifications:

Model	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 480V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 41^st free programmable
Current
Test current output	3×(0.3mA – 200A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 41^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	40Hz – 70Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. High power output (max. voltage power: 2000VA, current power: 3000VA)

3. Extremely high power stability (20~50 ppm)

4. Distortion factor less than 0.3% for linear resistance load

Stationary Power Source Three Phase Power Systems GENY YCSS-103 0
