| Brand Name: | GENY |

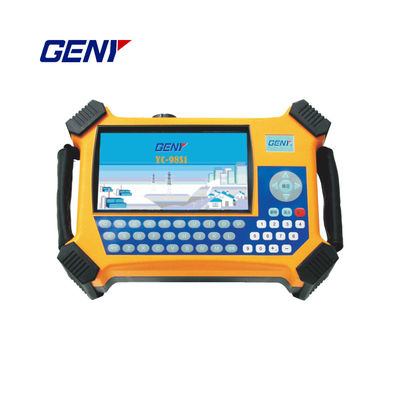

| Model Number: | YC98S1 |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T,L/C,D/P,T/T |
| Supply Ability: | 50 pcs/ 1 months |
|
Error (100AClamp CT) |
±0.2%(5A,100A) ±0.5% (other) |
|
|
Harmonic |
2nd ~ 51st |
|
|
Starting current |
0.05%Ie |
|
|
Power Measure Error (Full Wave & Fundamental Wave) |
||
|
Active Power (Direct connection) |
±0.05% |
|
|
Active Power (100A ClampCT) |
±0.2%(5A,100A) ±0.5% (other) |
|
|
Reactive Power (Direct connection) |
±0.1% |
|
|
Reactive Power (100A ClampCT) |
±0.5%(5A,100A) ±1.0% (other) |
|
|
Energy Measure Error (Full Wave & Fundamental Wave) |
||
|
Active Energy (Direct connection) |
±0.05% (±0.1%) |
|
|
Active Energy (100A ClampCT) |
±0.2%(5A,100A) ±0.5% (other) |
|
|
Reactive Energy (Direct connection) |
±0.1% |
|
|
Reactive Energy (100A ClampCT) |
±0.5%(5A,100A) ±1.0% (other) |
|
|
Error (Harmonic Wave) |
||
|
Direct Connection |
kWh,U, I, P, Q, S |
±0.2%H (H=1+0.01k, k=2~51) |
|
Clamp CT |
kWh,U, I, P, Q, S |
±0.5%H (H=1+0.01k, k=2~51) |
|
|
||
|
5A/100A |
||
|
Cycle Output Current for 5A CCT’s Self Calibration |
0.05A,0.1A,0.25A,0.5A,1A,2.5A,5A |
|
|
Error of 5ACCT’s Self Calibration |
±0.1% |
|
|
|
||
|
(linear and phase error) |
||
|
Clamp CT 500A/1000A |
kWh,U, I, P, Q, S |
±1.0%H (H=1+0.01k, k=2~51) |
|
Error - Others |
||
|
Ratio Measurement |
±0.5% |
|
|
Voltage Influence |
<±0.01% |
|
|
Frequency Influence |
<±0.01% |
|
|
Temperature Influence |
<±0.01%/℃ |
|
|
24h Accuracy Influence |
<±0.01% |
|
|
Harmonic Influence |
<±0.01% |
|
|
Phase angle |
||
|
Range |
- 180°~ 180° |
|
|
Error |
<±0.1° |
|
|
Frequency |
||
|
Range |
45 ~ 65Hz |
|
|
Error |
±0.01Hz |
|
|
Pulse output |
||
|
Inner High frequency (CH) |
1.8x109 P/kWh |
|
|
1.8x109 *(5/Ie)P/kWh |
||
|
Low frequency output |
3600P, 36000P, |
|
|
|
||
|
360000P/kWh(kvarh, kVAh) |
||
|
3600P, 36000P, |
||
|
|
||
|
360000P |
||
|
|
||
|
*(5/Ie)P/kWh(kvarh, kVAh) |
||
|
Pulse ratio |
1:01 |
|
|
Output level |
+5V (can be adjusted according to request) |
|
|
Pulse input |
||
|
Input Channel |
2 |
|
|
Input level |
5 ~ 10V |
|
|
Max Pulse Input frequency |
Max. 10kHz |
|
|
Display |
||
|
Resolution |
7’’TFT Touch Screen |
|
|
System |
Windows CE |
|
|
Other |
||
|
Voltage supply mode |
External power, Tested circuit, Battery |
|
|
Working power supply |
AC 55~600V |
|
|
Voltage Withstand |
4.0kV (voltage ¤t terminals, power supply & low voltage terminals) |
|
|
EFT(Electrical Fast Transient) |
2.0kV |
|
|
IP Level |
IP51 |
|
|
Surge |
2.0kV (common mode), 2.0kV (different mode) |
|
|
Power on Stability Time |
< 3mins |
|
|
Chargeable battery |
11.1V 3000mAh |
|
|
Power Consumption |
<9W |
|
|
Operation Temperature |
Temperature -20℃ ~ +55℃, humidity 40% ~ 95% |
|
|
Storage Temperature |
Temperature -40℃ ~ +80℃, humidity 40% ~ 95% |
|
|
Dimension (mm) (W×H×D) |
Main |
245×150×50 |
|
Carry case |
425×336×196 |
|
|
Weight (kg) |
Main |
2 |
|
Whole set |
10 |
|
