products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Stationary Meter Test Bench
Created with Pixso.

Three-Phase Meter Test Bench for Energy Meter Manufacturers

Three-Phase Meter Test Bench for Energy Meter Manufacturers

Three-Phase Meter Test Bench for Energy Meter Manufacturers

Brand Name: GENY
Model Number: YC-1893D
MOQ: 1 pcs
Price: negotiation
Payment Terms: L/C,T/T,D/P
Supply Ability: 100/Year
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Document:
Catalogue——Meter Test S...m..pdf
Resolution:
Better Than 0.01% Of Full Scale Value Of Range
Setting Accuracy:
Better Than 0.05% At The Final Range Value
Stability:
Better Than 0.005%/h (integration Time 150 S)
Frequency Range:
45Hz~65Hz
Power Of The Voltage Output:
3×2000VA
Power Of The Current Output:
3×2000VA
Voltage Supply:
3x220/380V±10%(or Customized) 50/60Hz ±2Hz
Packaging Details:
plywood case
Supply Ability:
100/Year
Highlight:

three-phase meter test bench

,

stationary energy meter tester

,

meter test bench for manufacturers

Product Description

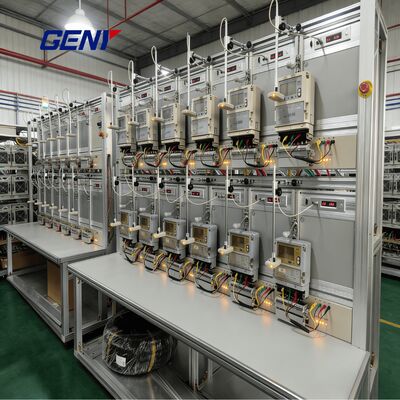

Three-Phase Meter Test Bench for Energy Meter Manufacturers
The meter test bench is a high-precision solution for electric energy meter testing and calibration. It is designed for single-phase and three-phase electricity meters, including mechanical, electronic, and smart meters. This meter test bench equipment supports automatic, semi-automatic, and manual testing modes, ensuring accurate and efficient meter verification for laboratories, utilities, and meter manufacturers.
Key Capabilities
  • Supports 3P4W, 3P3W, and 1P2W electric energy meters
  • Active and reactive energy testing
  • Starting current and creep (no-load) tests
  • High stability power output and high accuracy
  • Aluminum alloy structure, lightweight and corrosion-resistant
  • IEC-compliant meter test bench software (Windows-based)
Applications
  • Power utility companies
  • Metrology and calibration laboratories
  • Energy meter manufacturers
Competitive Advantages
  • High accuracy up to 0.01%
  • Configurable 3-48 position three-phase meter test bench
  • Over 18 months warranty
  • RS232 & Ethernet communication ports (optional)
Three-Phase Meter Test Bench for Energy Meter Manufacturers 0
