IEC-Compliant Smart Meter Test Bench for Energy Meter Calibration

Brand Name:	GENY
Model Number:	YC-1893D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Test Current Output Power:

3 × (0.3mA – 20A)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Harmonics:

2nd – 21st Free Programmable

Distortion Factor:

Better Than 0.3% For Linear Resistance Load

Power Of The Current Output:

3 × 1500VA

Power Of The Voltage Output:

3 × 1000VA

Packaging Details:

plywood case

Supply Ability:

100/Year

Product Description

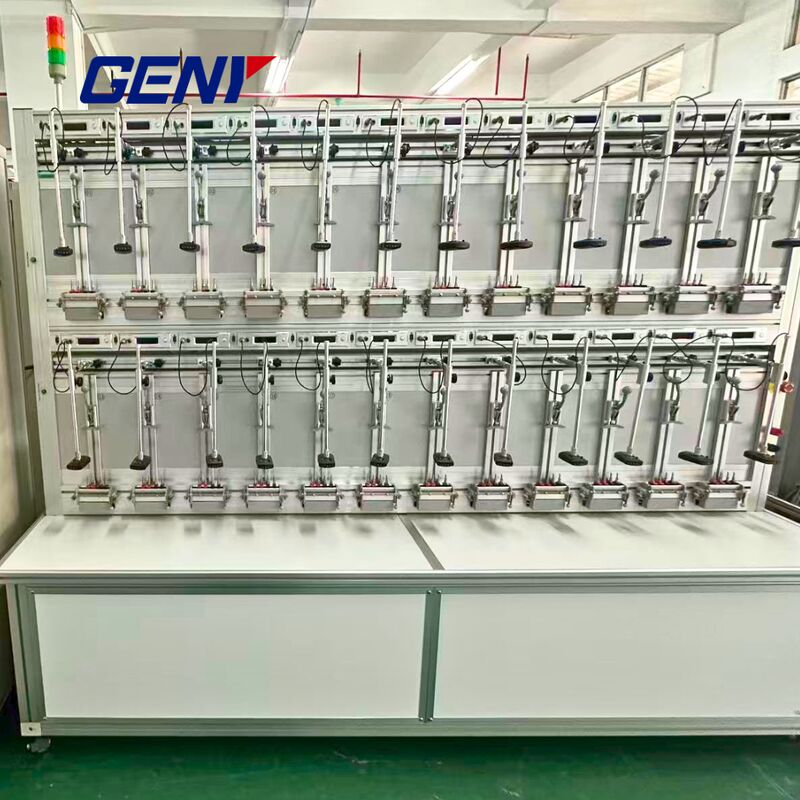

IEC-Compliant Smart Meter Test Bench for Energy Meter Calibration

What Is a Meter Test Bench?

A meter test bench is professional equipment used to calibrate, verify, and test the accuracy and performance of electric energy meters under different electrical conditions.

The YC1893D meter test bench supports automatic testing of single-phase and three-phase smart electricity meters, including accuracy verification, harmonic testing, starting current testing, and influence quantity testing according to IEC standards.

System Components

Three-phase static power source
Three-phase reference standard meter
Automatic meter suspension test rack
Smart meter communication modules
Industrial PC and control software
Calibration and verification accessories

Main Features of YC1893D Meter Test Bench

Fully Automatic Meter Calibration and Verification

The YC1893D system supports automatic calibration and verification of smart electricity meters, improving testing efficiency and reducing manual operation errors.

Smart Meter Communication Support

Parallel communication port support
RS232 communication for smart meter testing
ESAM testing software development
Compatible with Landis+Gyr smart meters

IEC Standard Accuracy Testing

The meter test bench supports comprehensive accuracy testing including:

Accuracy testing according to IEC standards
Pre-warming test
Starting current test
No-load test
Repeatability error test
Register test (dial test)
Clock frequency accuracy test
Maximum demand test

Harmonic and Influence Quantity Testing

The YC1893D can simulate various power grid conditions for advanced meter testing, including:

Voltage variation testing
Frequency variation testing
Reverse phase sequence testing
Voltage unbalance testing
Harmonic influence testing
Sub-harmonics testing
Odd harmonics testing (optional)

The system supports programmable harmonics from the 2nd to 21st order.

Customized Automation Functions

Optional customized features include:

Automatic wiring function for each station
Automatic short-circuit function
Quick Connection Device (QCD)
Customized software development

International Standards Compliance

The YC1893D meter test bench complies with the following international standards:

IEC 62052-11
IEC 62053-11
IEC 62053-21
IEC 62053-22
IEC 62053-23
IEC 62053-24
IEC 62056
EN 50470-1
EN 50470-2
EN 50470-3
IEC 61010
