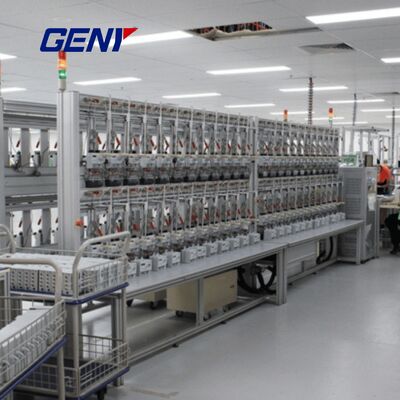

Single Phase Energy Meter Test Bench with High Accuracy and Power Stability

Brand Name:	GENY
Model Number:	YC-1891D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Output Current Power:

2800VA (Max)

Output Voltage Power:

2000VA (Max)

Frequency Adjustment Range:

45Hz ... 65Hz

Continuous Current:

100A

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

single phase energy meter test bench

high accuracy meter test bench

stationary power stability test bench

Product Description

Single Phase Energy Meter Test Bench with High Accuracy and Power Stability

This single phase energy meter test bench is engineered for precise, stable, and long-term meter verification in utility, laboratory, and industrial environments. It supports mechanical, electromechanical, and electronic energy meters, offering automatic, semi-automatic, and manual operation modes to accommodate diverse testing workflows and budget requirements. The system features high power stability, robust environmental adaptability, and reliable protection mechanisms, making it ideal for continuous operation and field-proven applications.

Key Features

Supports 1P2W single phase energy meters
Comprehensive testing modes:
- Active power
- Reactive power
- Cross-connected reactive power
MSVT function enables testing of single-phase meters with closed I-P links between current and voltage circuits
Optional current output switch for calibration of 2-element meters
Simultaneous testing of meters with identical specifications but different meter constants
Automatic rotor mark positioning for mechanical disc meters, significantly improving test efficiency
Supports starting test and creeping (no-load) test
Swing-together scanning heads simplify operation and improve system control
Built-in protection against:
- Overload
- Short-circuited voltage circuits
- Open current circuits
Aluminum alloy structure: lightweight, high strength, corrosion resistant, suitable for harsh working conditions

Advanced Testing Software

Compatible with Windows 2000 / XP / 7 / 8 / 10
User-friendly interface for fast operation and training
Modular testing functions include:
- Accuracy (error) test
- Harmonic test
- Demand test
- Influence tests (voltage, frequency, harmonic)
Designed to support modern energy meter standards and long-term system upgrades

Primary Competitive Advantages

High quality construction for long service life

Warranty over 18 months, ensuring reliable after-sales support

High accuracy class: 0.05 / 0.02
Highest accuracy up to 0.01% under 3 meter positions

Flexible configuration: 3 to 48 positions single phase meter test bench

Extremely high power source stability, suitable for unstable grid conditions

Optional neutral current test

Timing error test supported

Comprehensive influence tests: voltage, frequency and harmonics

RS232 and Ethernet communication ports installed at each meter position

Optional tilt impact test, enhancing meter reliability verification
