Single-Phase Energy Meter Testing System with Automatic Calibration Function

Name: Single-Phase Energy Meter Testing System with Automatic Calibration Function
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Accuracy:

0.05/0.02/0.01

Test Voltage Output:

24V – 288V Or Customized

Test Current Output:

1mA – 100A Or Customized,Max.200A

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (integration Time 150 S)

Load Regulation From 0-max. Load:

Better Than 0.01%

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

single-phase energy meter tester

automatic calibration meter test bench

stationary energy meter testing system

Product Description

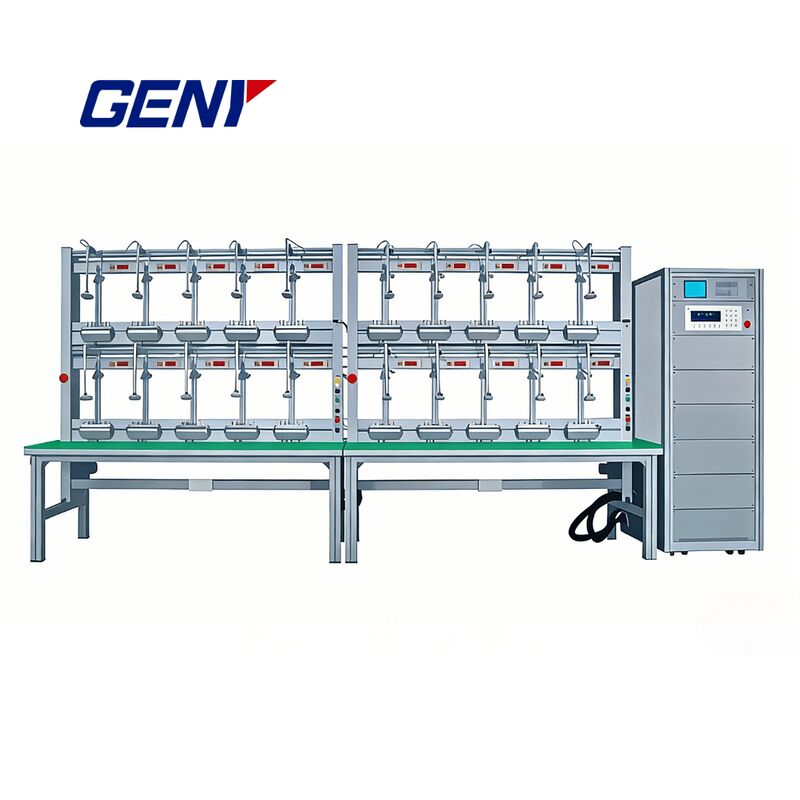

Single-Phase Energy Meter Testing System with Automatic Calibration Function

The energy meter test system is designed for accurate testing and calibration of mechanical meters, electromechanical meters, and electronic energy meters. It supports automatic, semi-automatic, and manual operation modes, making it suitable for laboratories, utilities, and meter manufacturers.

Key Features & Functions

Supports testing of mechanical, electromechanical, and electronic energy meters
Applicable meter type: Single-phase 2-wire (1P2W) meters
Multiple testing modes including active power, reactive power, and cross-connected reactive power
Equipped with MSVT, enabling testing of single-phase meters with closed I-P links between current and voltage measuring circuits
Optional current output switch for calibration of two-element meters
Capable of simultaneous testing of meters with identical specifications but different meter constants
Automatic rotor mark positioning for mechanical meters, significantly improving testing efficiency
Supports starting test and creeping test
Comprehensive protection functions, including overload protection, short-circuited voltage circuit protection, and open current circuit protection
Synchronized swinging scanning heads simplify system control and operation
Constructed from high-strength aluminum alloy, offering lightweight design, durability, and excellent corrosion resistance

Advanced Meter Testing Software

User-friendly meter testing software compatible with Windows 2000 / XP / 7 / 8 / 10
Includes comprehensive functional modules for modern energy meters
Accuracy and error testing
Harmonic testing
Demand testing
Influence and environmental testing
Designed to meet the testing requirements of modern smart meters and traditional energy meters
