Three-Phase Meter Test Bench with Automatic Calibration

Name: Three-Phase Meter Test Bench with Automatic Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Relative Humidity:

35%~85%

Ambient Temperature:

-10°C~+40°C

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Altitude:

＜2500m

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three-phase meter test bench

automatic calibration test bench

stationary meter calibration equipment

Product Description

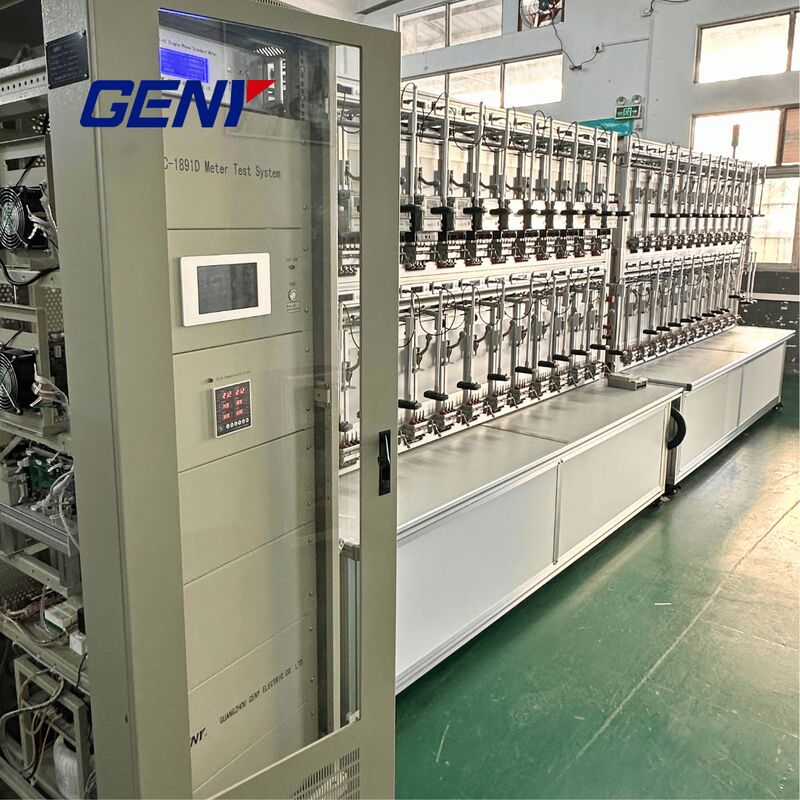

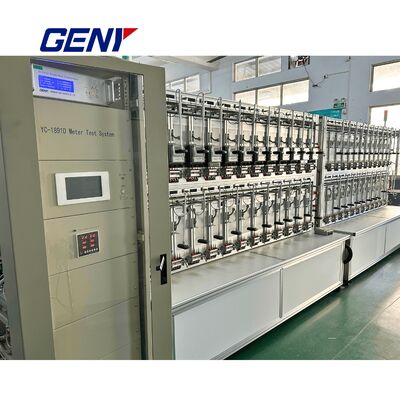

Three-Phase Meter Test Bench with Automatic Calibration

This high-precision meter test bench is engineered for reliable energy meter testing and calibration, supporting mechanical meters, electromechanical meters, and electronic meters in automatic, semi-automatic, and manual operation modes. It is designed to test meters with closed I-P links between current and voltage circuits.

Key Testing Features

Meter Types Supported: 3P4W, 3P3W, and 1P2W energy meters
Power Testing Modes: Active power, reactive power, and cross-connected reactive power measurement
Harmonic Testing & Demand Testing capabilities included in software
Error Test and influence quantity test functions for full compliance validation

Technical Specifications

Aluminum alloy construction - lightweight, strong, and corrosion resistant. Meter test software compatible with Windows 10/8/7/XP/2000. Fully automatic test system for laboratory and production line use. Three-phase meter test capability with high accuracy.

This automatic meter test system is ideal for calibration laboratories, meter manufacturers, and utility companies requiring professional meter calibration equipment for energy meter verification, quality control, and compliance testing. The system ensures accurate meter testing with efficient operation and comprehensive safety protection.

Technical spec.	YC1893D-ICT-48
Number of meter positions equipped ICT	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max.3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
