Single Phase Intelligent Meter Test Equipment for Energy Meter Calibration

Single Phase Intelligent Meter Test Equipment for Energy Meter Calibration

Brand Name:	GENY
Model Number:	YC1891D-12
MOQ:	1 PCS
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Accuracy:

0.05

Power Source:

YCS-101-600

Standard Meter:

SZ-01A-K3

MSTV:

HJ200G-12

Scanning Head:

YCG-2-series

Packaging Details:

Plywood Case

Supply Ability:

100/Year

Highlight:

single phase energy meter tester

intelligent meter calibration equipment

stationary meter test equipment

Product Description

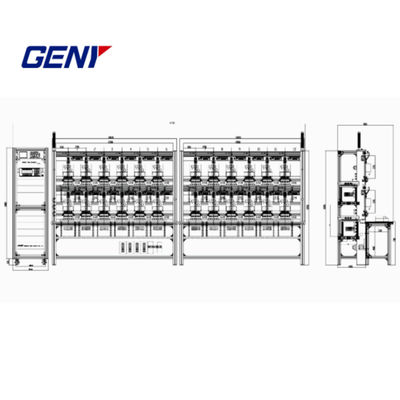

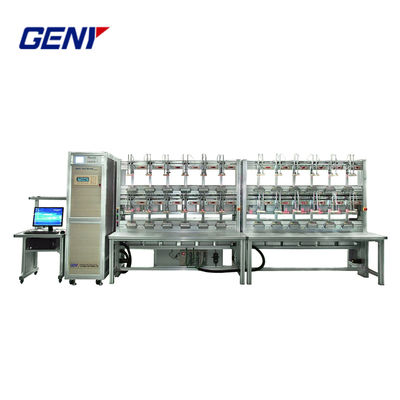

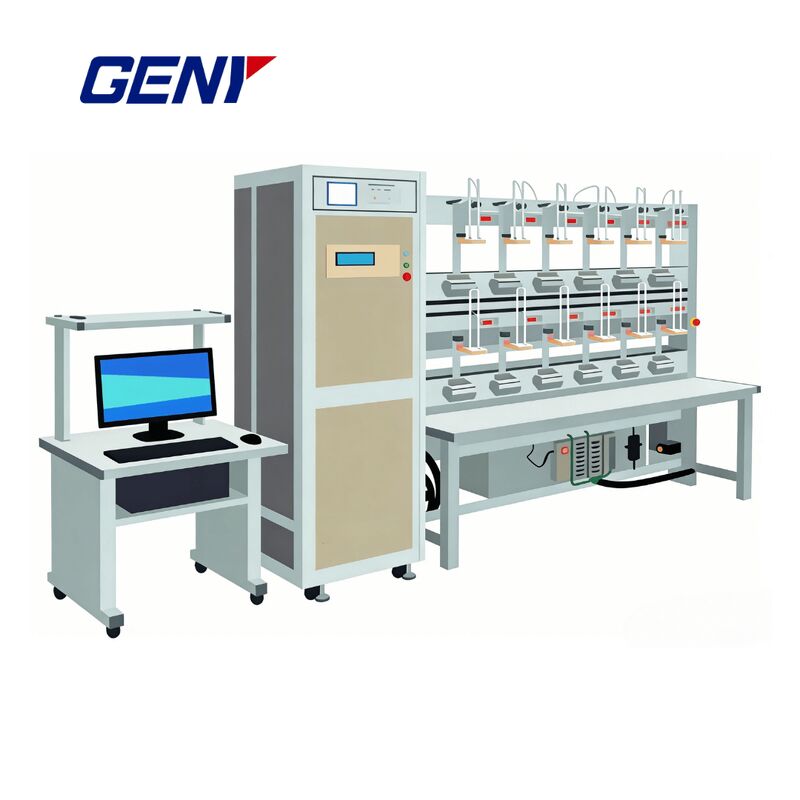

Single Phase Intelligent Meter Test Equipment for Energy Meter Calibration

The YC1891D Meter Test Equipment is a high-precision, stable, and highly automated meter test system independently developed and manufactured by our company. Backed by years of experience in energy meter testing and calibration, this system is widely used by utilities, metering laboratories, and energy meter manufacturers.

Key Features

High testing accuracy and strong system stability
Intelligent automation with flexible configuration
Reduces manual intervention and improves testing efficiency
Lowers overall operating costs
Supports mechanical meters, electronic mechanical meters, and electronic meters
Complies with international meter testing standards

Application Conditions and Requirements

Environment	Power Requirement	Safety
Operation Temperature: -10°C to +40°C Humidity: 35% to 85% Altitude: < 2500m	Voltage Supply: 3x220/380v±10% (or customized) Frequency: 50/60Hz±2Hz	IP Class: IP 30 Conformity: CE conformity

Voltage Output Specifications

Parameter	Specification
Test voltage output (Phase-Neutral)	24V-300V (or customized)
Power of the voltage output	Max. 250VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable

Current Output Specifications

Parameter	Specification
Test current output	1mA-120A/200A
Power of the current output	Max. 250VA / 500VA / 1000VA / 2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
