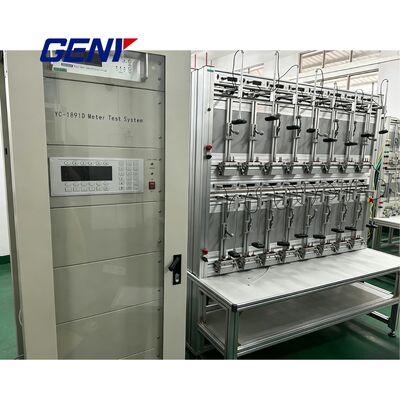

Single Phase Smart Meter Test Bench for Energy Meter Calibration and Accuracy Testing

Name: Single Phase Smart Meter Test Bench for Energy Meter Calibration and Accuracy Testing
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC-1891D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Single-phase meter test sys...em.pdf

Output Current Power:

2800VA (Max)

Output Voltage Power:

2000VA (Max)

Distortion Factor:

Better Than 0.3% For Linear Resistance Load

Voltage Supply:

220V±10% Or Customized 50/60Hz±2Hz

Ambient Temperature:

-10°C -- +40°C

Harmonics:

2nd – 21st Free Programmable

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

Single Phase Smart Meter Test Bench

Energy Meter Calibration Equipment

Stationary Meter Accuracy Testing

Product Description

Single Phase Smart Meter Test Bench for Energy Meter Calibration and Accuracy Testing

Ultra-High Accuracy Meter Calibration

Standard accuracy class: 0.05%
Optional ultra-high accuracy: 0.02%
Highest accuracy reaches 0.01% under 3 meter positions
Stable output performance for long-term continuous testing

This high precision makes the YC1891D series suitable for:

Smart meter calibration
Utility meter verification
Energy meter laboratory testing
Revenue meter inspection

Supports Multiple Energy Meter Types

The system can test:

Mechanical energy meters
Electromechanical meters
Electronic energy meters
Smart electricity meters
Single-phase 1P2W meters

Testing modes include:

Active power testing
Reactive power testing
Cross-connected reactive power testing

With optional current output switching, the equipment can also calibrate 2-element meters.

Automatic Meter Testing Functions

The YC1891D series supports:

Fully automatic operation
Semi-automatic operation
Manual testing mode

Advanced automatic features include:

Automatic rotor mark positioning for mechanical meters
Starting test
Creeping test
Timing error test
Influence testing
Harmonic testing
Demand testing

These functions significantly improve testing efficiency and reduce labor costs.

Programmable Harmonic Testing

The system supports free programmable harmonics from the 2nd to the 21st order, allowing advanced power quality and meter performance analysis.

Ideal for:

Smart meter harmonic testing
IEC standard compliance testing
Utility laboratory evaluation
R&D verification

Excellent Output Stability

Voltage Output Performance

Output range	24V - 288V
Customized voltage available	Yes
Stability	Better than 0.005%/hour
Distortion factor	Lower than 0.3%
Load regulation	Better than 0.01%

Current Output Performance

Output range	1mA - 100A
Optional maximum current	Up to 200A
Stability	Better than 0.005%/hour
Harmonic programmable output	Yes
Long-duration operation	Extremely stable

The high stability ensures reliable and repeatable calibration results.
