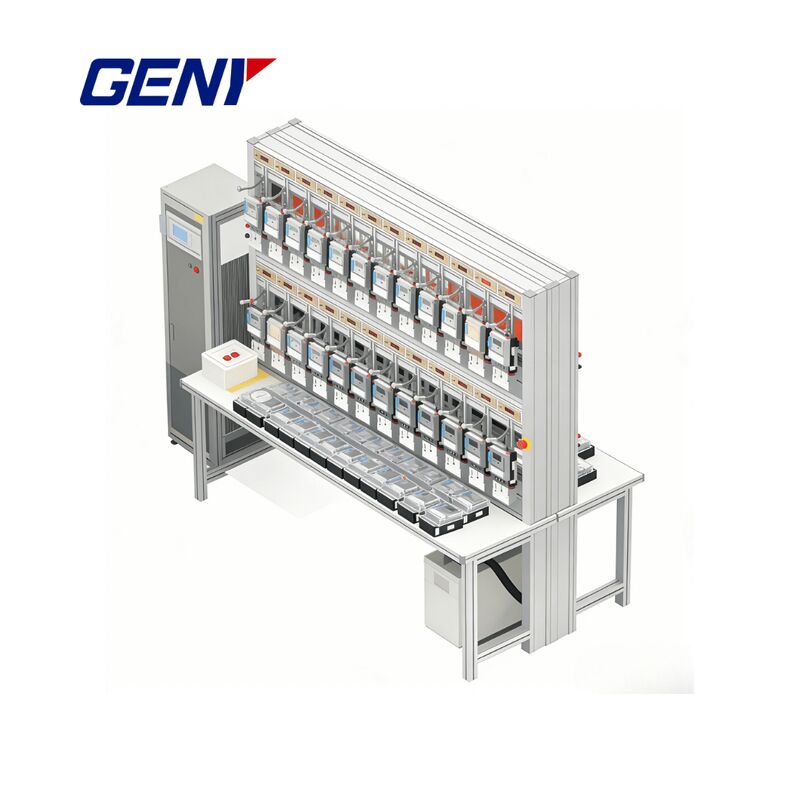

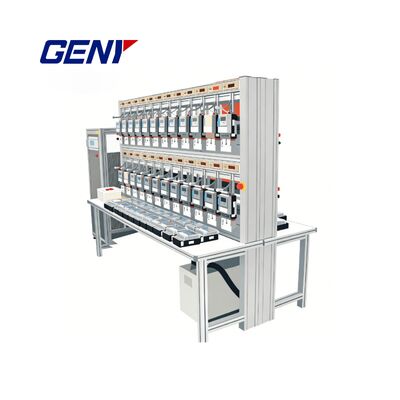

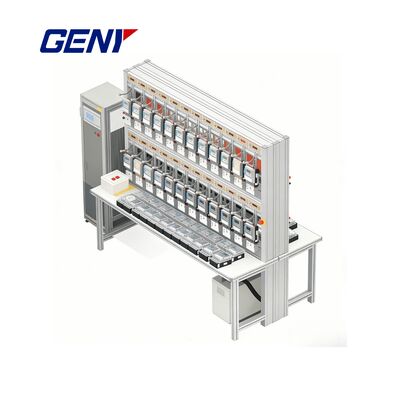

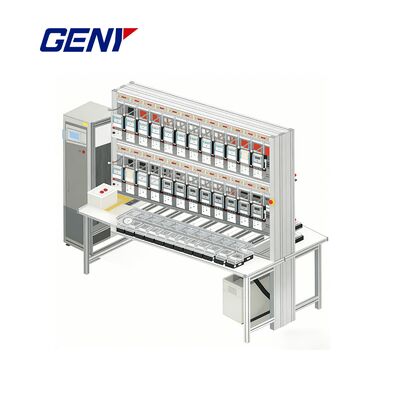

YC-1891G Series Single-Phase Semi-Automatic Meter Test System

Brand Name:	GENY
Model Number:	YC1891G
MOQ:	1 PCS
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Number Of Meter Positions:

3-60 (customer Option)

Photoelectric Scanning Head:

Option

Continuous Current:

100 A

Head Adjustment::

Individual Height & Depth, Common Flip-over Frame

Error Display Type:

LED Window (one Per Meter Position)

Rack Material:

Aluminium Alloy

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

single-phase meter test system

semi-automatic meter test bench

stationary meter test system with warranty

Product Description

YC-1891G Series Single-Phase Semi-Automatic Meter Test System

The YC-1891G Series Single-Phase Semi-Automatic Meter Test System is engineered and manufactured in strict compliance with national and industry standards, including GB/T 11150-2001 Electric Energy Meter Test Equipment, JJG 597-2005 Verification Regulation for AC Electric Energy Meter Test Systems, JG 307-2006 Verification Regulation for AC Electric Energy Meters, DL/T 614-2007 Verification Regulation for Multifunction Energy Meters, and DL/T 645-2007 Communication Protocol for Multifunction Energy Meters.

This advanced single-phase meter test system is specifically designed for the verification and calibration of Class 0.2 and lower accuracy electronic single-phase energy meters, including single-phase carrier meters, prepaid energy meters, and smart energy meters. It serves as an optimal solution for meter testing laboratories, power utilities, and metering equipment manufacturers, delivering exceptional accuracy, reliable performance, and efficient semi-automatic operation.

Technical Specifications

Operating Environment

Power Supply	AC220 V ±10%, 50 Hz ±2 Hz
Ambient Temperature	-10°C to +40°C
Relative Humidity	35% to 95%

Output Voltage

Voltage Range	24 V to 288 V
Max. Output Power	10,800 VA
Voltage Setting Resolution	0.01%
Voltage Stability	0.02% / 50 ppm / 120 s
Load Regulation	0.01%
Voltage Distortion	≤ 0.3% (entire linear load range)

Output Current

Current Range	1 mA to 120 A (on request up to 230A)
Max. Output Power	12,000 VA (MAX)
Current Setting Resolution	0.01%
Current Stability	0.02% / 50 ppm / 120 s
Continuous Current	100 A
Load Regulation	0.01%
20-min Maximum Current	120 A
Current Distortion	≤ 0.3% (entire linear load range)

Output Phase

Phase Shift Range	0° to 360°
Phase Resolution	0.01°

Output Frequency

Frequency Range	45 Hz to 65 Hz
Frequency Resolution	0.01 Hz
