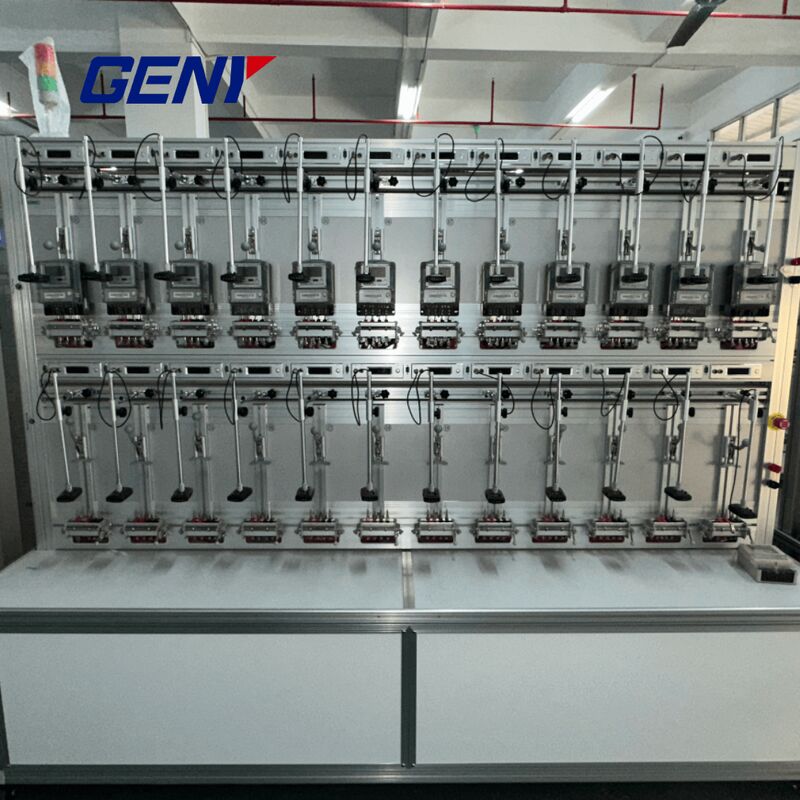

Advanced Meter Test System for Utilities and Laboratories

Advanced Meter Test System for Utilities and Laboratories

Advanced Meter Test System for Utilities and Laboratories

Brand Name: GENY
Model Number: YC-1893D
MOQ: 1
Price: negotiate rates
Payment Terms: T/T,L/C,D/P,T/T
Supply Ability: 5 sets / 1 months
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Document:
CE-Three Phase Meter Test S...3G.pdf
Power Supply:
3P4W 3×380V±10%, 50Hz±2Hz
Ambient Temperature:
-10℃ To +40℃
Ambient Humidity:
35% To 95%
Frequency Adjustment Range:
45Hz To 65Hz
Frequency Resolution:
0.01Hz
Power Output Stability:
0.02%/120s
Packaging Details:
Plywood cases
Supply Ability:
5 sets / 1 months
Highlight:

stationary meter test system for utilities

,

meter test system for laboratories

,

advanced meter test system with warranty

Product Description
Advanced Meter Test System for Utilities and Laboratories
High-precision testing solution designed for utility companies and calibration laboratories, providing comprehensive meter verification with exceptional accuracy and reliability.
Key Features & Functions
  • High-accuracy testing of active/reactive power and energy
  • Comprehensive error analysis with stable and repeatable results
  • Fast starting and creeping tests with automatic detection
  • Forward/reverse and four-quadrant reactive power testing
  • Precision time accuracy and demand function verification
  • Fully automatic operation with optional manual control
  • Intelligent data processing, storage, and flexible report output
  • Efficient photoelectric head design for higher throughput
  • Strong protection: current open-circuit and voltage short-circuit
  • Flexible configuration supporting 3-48 meter positions
Technical Specifications
Main Technical Parameters Description
Output Voltage Range (Phase-to-Neutral) 3*40V to 450V
Output Voltage Power 3*1000VA (Maximum)
Voltage Resolution 0.01%
Voltage Stability 0.02%/120s
Load Change Rate 0.01%
Voltage Distortion ≤0.3%
Output Current Range 3*1mA to 120A (Maximum up to 230A upon customer request)
Output Current Power 3*2000VA (Maximum)
Current Resolution 0.01%
Current Stability 0.02%/120s
Current Distortion ≤0.3% (Full linear load range)
Continuous Current 100A
Maximum Continuous 20-Minute Current 120A
Phase Adjustment Range 0° to 360°
Phase Resolution 0.01°
