High-Precision Smart Meter Calibration System

Name: High-Precision Smart Meter Calibration System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (integration Time 150 S)

Harmonics:

2nd – 21st Free Programmable

Distortion Factor:

< 0.3% For Linear Resistance Load

Power Of The Voltage Output:

3×2000VA

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

smart meter calibration system

high-precision meter test system

stationary meter calibration equipment

Product Description

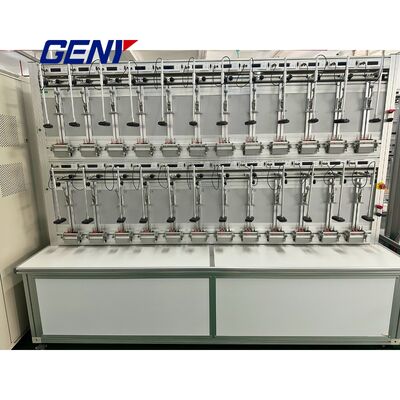

High-Precision Smart Meter Calibration System

Features & Functions

The GENY Three Phase Meter Test Bench offers advanced functions for calibration, testing, and verification of three-phase energy meters, including smart meters.

Supports parallel communication ports for smart meter testing via RS232
Calibration terminals on the test rack for bench verification
Compatible with EDMI three-phase energy meters for calibration and pulsing tests
Accuracy testing of reference standard meters
Pre-warming function for stable measurements
Accuracy testing according to IEC standards
Creeping and starting current tests
Repeatability error tests
Dial (register) tests
Influence quantity tests related to accuracy, including:
- Voltage variations
- Frequency changes
- Reverse phase sequence
- Voltage unbalance
Harmonic influence testing in voltage and current circuits according to IEC
Sub-harmonics testing per IEC standards (IEC 62052-11 / 62053-21/22/23)
Optional odd harmonics testing

Customized Features

The meter test bench can be customized to meet advanced testing requirements:

Individual (voltage/current separate) and combined (power) calibration and testing
Dual 24+24 positions configuration: only 24 positions run at a time with relay switch control (software-controllable)
Compatible with CT and WC ranges: 1(6)A, 1(10)A, 5(20)A, 5(100)A, 5(120)A
Supports gating and pulse methods for calibration and testing
Compatible with DLMS protocol for Mk10M meters
Compatible with EDMI Command Line for Mk10E meters
