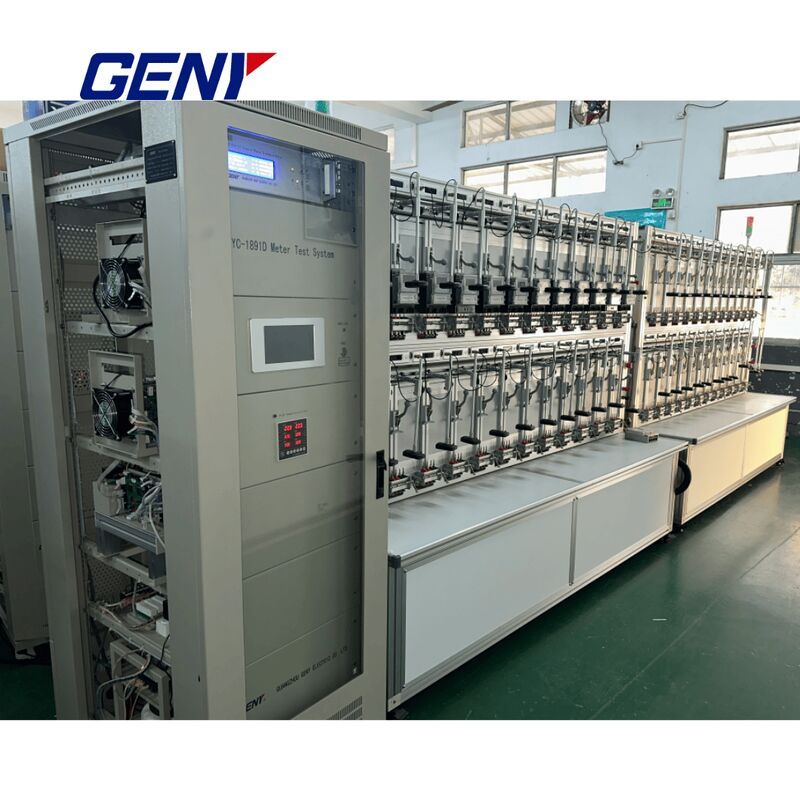

Advanced Energy Meter Test Bench for Utility and Laboratory Use

Name

Advanced Energy Meter Test Bench for Utility and Laboratory Use

Brand Name:	GENY
Model Number:	YC-1891D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Reservation:

Better Than 0.01% Of Full Scale Value Of Range

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (integration Time 150 S）

Load Regulation From 0-max.load:

Better Than 0.01%

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

energy meter test bench for utilities

,

laboratory meter test equipment

,

stationary energy meter tester

Product Description

Advanced Energy Meter Test Bench for Utility and Laboratory Use

Standard Functions

Accurate measurement of active power, reactive power, active energy, and reactive energy
Start-up and creep tests for electricity meters
Automatic mark function for fast start-up and creeping verification
Measurement of basic error, average error, standard deviation, and 24-hour variation
Voltage influence, frequency influence, harmonic influence (2nd-21st), and phase-sequence influence tests
Simultaneous current measurement across all meter positions
Testing without disconnecting the meter's voltage and current circuits
Built-in current open-circuit protection and voltage short-circuit protection
High-efficiency optical scanning head for pulse acquisition
Supports both motorized and manual operating modes
Software-based automatic error calculation, data sorting, data storage, and online output
Data management with customizable report printing
Barcode input supported
Simple, durable, and reliable mechanical structure
Flexible configurations from 3 to 60 meter positions

Special Functions

Forward and reverse active energy error tests
Forward and reverse reactive energy error tests
Compatible with SW-5D precision time-base source for daily timing error measurement
Communication test and broadcast time synchronization for smart meters
Meter constant verification (pulse counting / timing / start-stop energy methods)
Time-period switching, demand interval, and demand indication error tests
Register indication and combined register error tests
Power consumption test (optional)
Inclination influence test (optional)
Prepaid energy meter test functions (optional)

Specifications

Main Technical Indicators	Parameter Value
Power Supply	AC220V±10%, 50Hz±2Hz
Ambient Temperature	-10°C ... +40°C
Ambient Humidity	35% ... 95%
Output Voltage Range	24V ... 288V
Output Voltage Power	1000VA (Max)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3% (Full linear load range)
Output Current Range	1mA ... 120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Current Resolution	0.01%
Current Stability	0.02%/120s
Load Change Rate	0.01%
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Phase Adjustment Range	0° ... 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz ... 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

Advanced Energy Meter Test Bench for Utility and Laboratory Use 0
