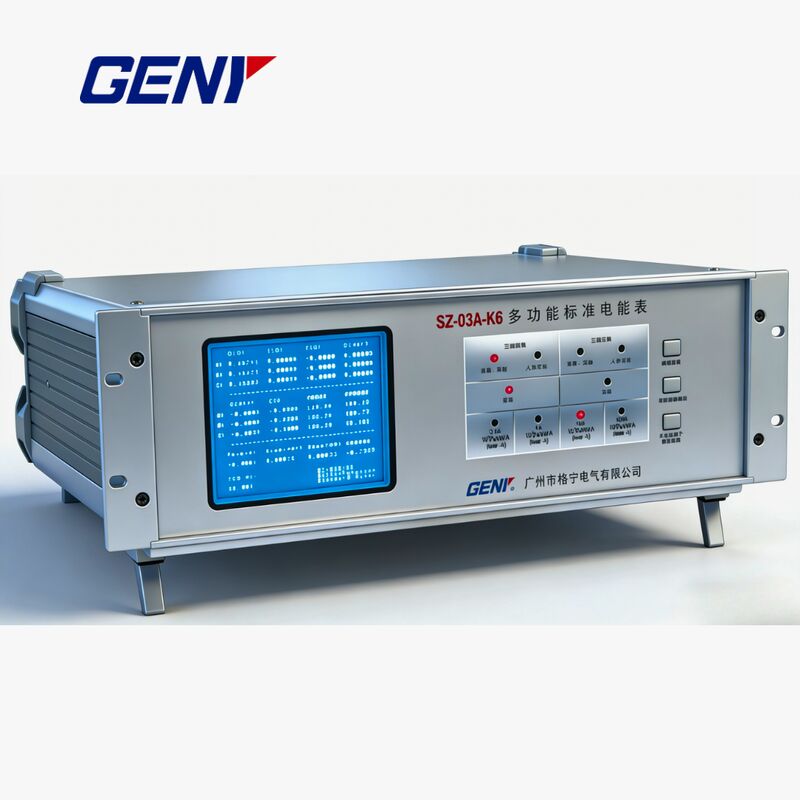

SZ-03A-K8F Series Three Phase Standard Meter

Name: SZ-03A-K8F Series Three Phase Standard Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: SZ-03A-K8
Availability: InStock

Brand Name:	GENY
Model Number:	SZ-03A-K8
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

SZ-03A-K8

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Pulse Peak

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

three phase standard meter

stationary reference standard meter

SZ-03A-K8F series meter

Product Description

SZ-03A-K8F Series Three Phase Standard Meter

High-precision three-phase standard meter utilizing advanced digital signal processing technology for accurate electrical measurements.

Product Overview

The SZ-03A-K8F series three-phase standard meter incorporates cutting-edge technologies including high-speed DSP, CPLD, MCU, and ADC with self-calibration capabilities. This enables high-speed AC signal sampling and specialized digital processing algorithms, resulting in a simplified structure with measurement accuracy of 0.02% relative error.

Key Features

High precision with long-term stability
Universal unit suitable for multiple applications
Synchronous measurement of various electrical parameters in three-phase or single-phase circuits
Direct reactive power calculation for accurate phase angle measurement
Three energy constants for simplified calibration and reliable results
Low-frequency pulse input function for error calculation
Vector diagram display capability
Waveform display for voltage and current of each phase
Harmonic analysis and display
RS232 and RS485 interfaces for computer system operation

Technical Specifications

Parameter	Specifications
Type	SZ-03A-K8
Test Voltage Range	5V-480V
Voltage Error	±0.02% (5V-480V)
Voltage Display Range	5.000000V-480.000V
Test Current Range	10mA-120A
Current Error	±0.02% (50mA-120A) ±0.05% (10mA-50mA)
Current Display Range	1.000000A-120.0000A
Active Power Error	±0.02% (50mA-120A)
Reactive Power Error	±0.05% (50mA-120A)
Apparent Power Error	±0.05% (50mA-120A)
Phase Angle Range	0°-360°
Phase Angle Error	±0.05°
Phase Angle Display Range	0.000001°-359.9999°
Frequency Range	45Hz-65Hz
Frequency Display Range	45.000-65.000
High Frequency Pulse Output	1x10⁹ (0A-1A) 1x10⁸ (1A-10A) 1x10⁷ (10A-120A)
Low Frequency Pulse Output	2x10-5xCH
Pulse Ratio	1:01
Output Level	5V
Pulse Input Level	24V
Pulse Input Frequency	500Hz (Max)
Dimensions (W×H×D)	432×131×470 mm
Weight	16 kg
