0.05% Single Phase Reference Standard Meter

Name: 0.05% Single Phase Reference Standard Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: SZ-03A-K6
Availability: InStock

Brand Name:	GENY
Model Number:	SZ-03A-K6
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

CE--SZ-01A-K3.pdf

Model NO.:

SZ01A-K3

Test Voltage Range:

30V – 480V

Voltage Supply:

220V ± 10%, 50/60Hz ± 2Hz

Ambient Temperature:

10°C -- 30°C

Dimensions (W×H×D) (mm):

325×109×288

Relative Humidity:

45% -- 75%

Packaging Details:

Aluminum case with carton

Supply Ability:

100/Year

Highlight:

single phase reference standard meter

0.05% accuracy reference standard

stationary electrical reference meter

Product Description

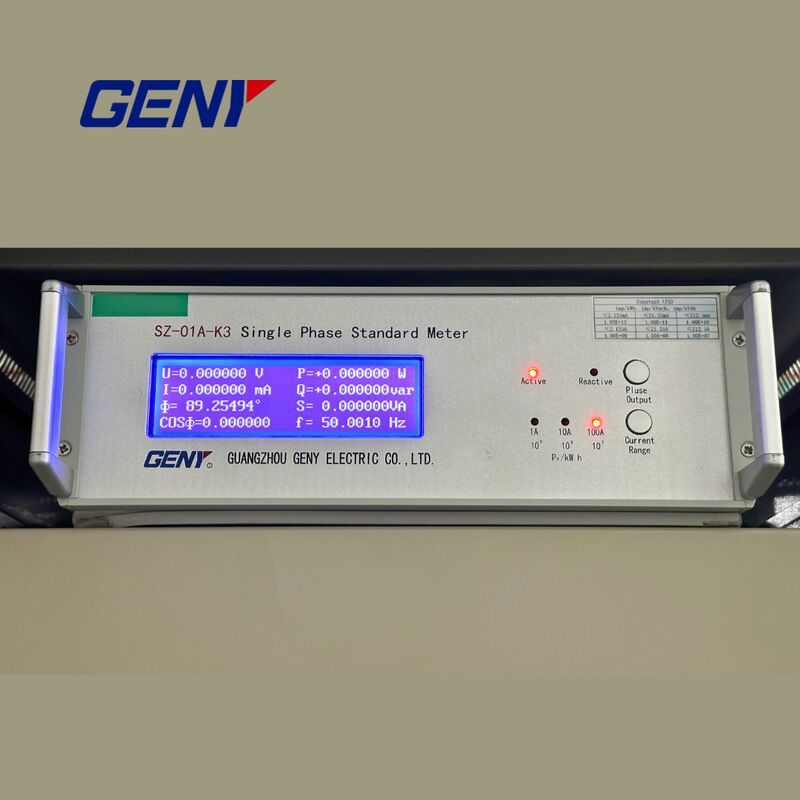

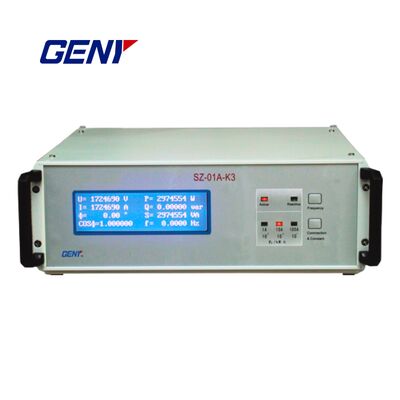

0.05% Single Phase Reference Standard Meter

Product Overview

The Stationary Reference Standard from Guangzhou GENY Electric Co., Ltd is a high-precision Single Phase Reference Standard Meter designed for Stationary Single Phase Energy Meter Test Systems. With a wide current measurement range and accuracy up to 0.05%, this reference meter ensures reliable and stable performance for energy meter calibration, testing, and verification. It is widely used by utility companies, metrology laboratories, and energy meter manufacturers that require precise measurement and dependable testing equipment.

Key Features

High Accuracy up to 0.05% - Ideal for professional energy meter calibration and verification
Wide Current Measurement Range - Suitable for different testing requirements
Cost-Effective Solution - Excellent performance-to-price ratio for laboratories and manufacturers
Multiple Testing Modes - Supports active power and reactive power testing
Comprehensive Measurement Functions - Measures voltage, current, phase angle, frequency, power factor, active power, reactive power, and apparent power
RS232 Communication Interface - Measurement data can be easily managed and analyzed via computer
Stable and Reliable Performance - Designed for long-term stationary testing environments

Specifications

Model	SZ01A-K3
Test Voltage Range	30V - 480V
Voltage Error	±0.05% (30V - 480V) ±0.1% (5V - 50V)
Voltage Display Range	5.000000V - 480.0000V
Test Current Range	10mA - 120A
Current Error	±0.05% (0.2A - 120A) ±0.1% (10mA - 0.2A)
Current Display Range	1.000000mA-120.0000A
Active Power Error	±0.05% (0.2A - 120A)
Reactive Power Error	±0.1% (0.2A - 120A)
Apparent Power Error	±0.1% (0.2A - 120A)
Phase Angle Range	0º - 360º
Phase Angle Error	±0.05º
Phase Angle Display Range	0.000001º - 359.9999º
Frequency Range	45Hz - 65Hz
Frequency Display Range	45.0000 - 65.0000
High Frequency Pulse Output	1109 (0.2A - 1A) 1108 (1A - 10A) 1*107 (10A - 120A)
Low Frequency Pulse Output	210-5CH
Pulse Ratio	1:1
Output Level	5V
Voltage Supply	220V ± 10%, 50/60Hz ± 2Hz
Ambient Temperature	10°C - 30°C
Influence of External Fields	≤ 0.05% / mT
Relative Humidity	45% - 75%
Dimensions (WHD)	325109288 mm
Weight	5.5 kg

Applications

National Utility Companies - Energy meter verification and calibration
Government Metrology Institutes - Precision measurement and standard testing
Energy Meter Manufacturers - Production line testing and quality control
Power Laboratories and Calibration Centers
