IEC-Compliant Automatic Meter Test Bench for Energy Meters

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Brand Name:	GENY
Model Number:	YC1891/3D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Accuracy:

0.05 / 0.02/ 0.01%

Power Of The Voltage Output:

Max.3*2000VA

Power Of The Current Output:

Max.3*2800VA

Ambient Temperature:

-10°C -- +40°C

Packaging Details:

Plywood Case

Supply Ability:

30 PCS per month

Highlight:

IEC-compliant automatic meter test bench

stationary energy meter test bench

automatic meter test bench with warranty

Product Description

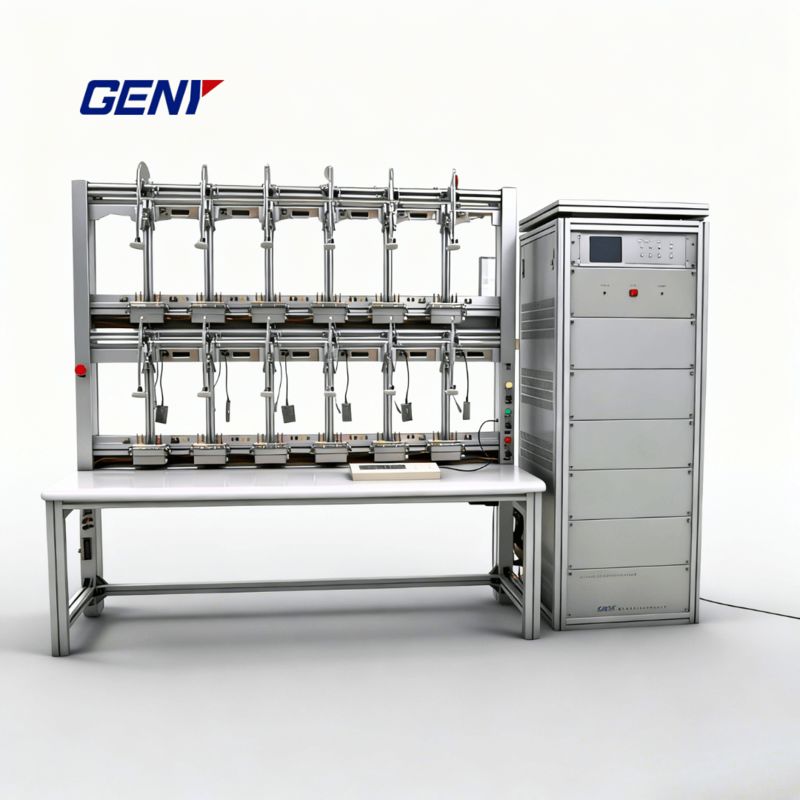

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.
Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features

IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) -- critical for global meter certification.
Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
Fully Automatic Testing Capabilities:
- Accuracy testing (4-quadrant, IEC-aligned)
- Creeping (no-load) & starting current tests
- Dial/register verification
- Influence quantity testing (voltage, frequency, harmonic distortion)
- Error repeatability analysis
- Sub/odd harmonic testing (up to 41st order, IEC-standard)
- Tamper & fraud monitoring
- Simultaneous multi-position meter testing (high throughput)
Wide Voltage/Current Range: Supports up to 480V & 200A -- compatible with most global meter specifications.
Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.
