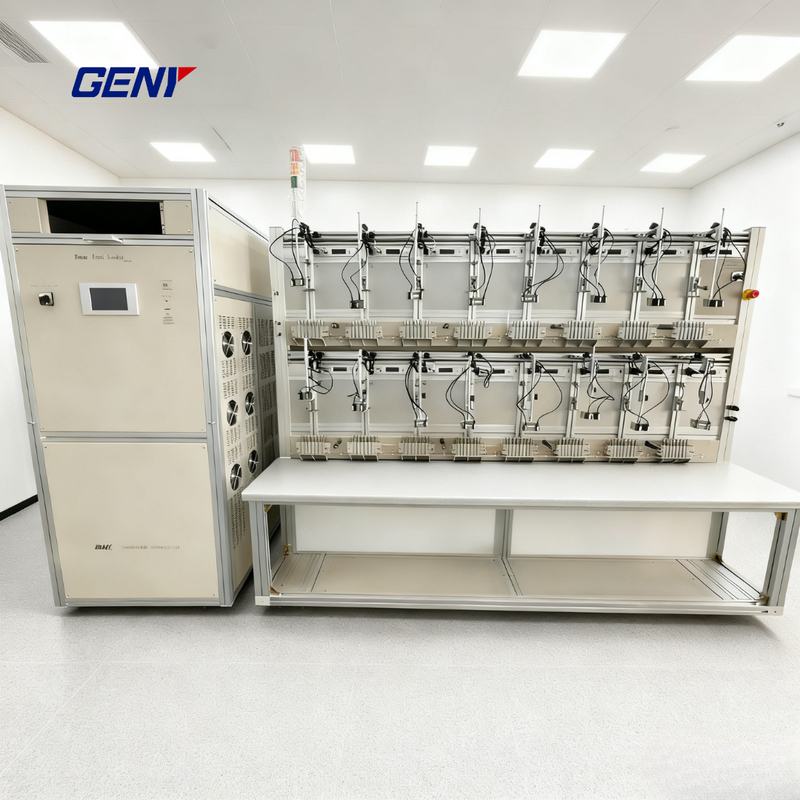

ProCal Stationary Energy Meter Test Bench

ProCal Stationary Energy Meter Test Bench

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1PCS
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Test Voltage Output (Phase-Neutral):

3× (24V – 500V) Or Customized

Test Current Output:

3× (1mA – 120A)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Packaging Details:

plywood case

Supply Ability:

30pcs per month

Highlight:

ProCal stationary energy meter

meter test bench equipment

stationary meter test bench

Product Description

ProCal Stationary Energy Meter Test Bench

GENY Electric, a national high-tech enterprise established in 2002, focuses on the field of high-precision electric energy testing, owns 18 patents, including 8 invention patents, and is a Guangzhou contract-abiding and trustworthy enterprise and a taxpayer with A-level tax credit. The company's main products include single-phase electric energy meter verification device, three-phase electric energy meter verification device, standard power electric energy meter, portable verification instrument, etc., which are widely used in electric power, railway, medical, water treatment and other industries.

Tests Supported

Accuracy / Error Testing (Active, Reactive, Apparent)
Starting Current Test
No‑Load / Creeping Test
Dial / Register Test
Repeatability / Stability Test
Influence Quantity Testing: voltage variation, frequency change, phase-sequence reversal, voltage unbalance
Harmonic Influence (programmable 2nd-21st) and Sub-harmonic Effects
Tamper / Fraud Simulation
Pre‑warming and Conditioning

Operating Modes

Manual Mode: Full operator control for parameter tuning and custom tests
Automatic Mode: Predefined test plans with automatic execution, data logging, and report generation

Components of the Test Bench

Three-Phase Voltage Source: 24-500 V per phase, high accuracy, programmable harmonics
Three-Phase Current Source: 1 mA-120 A per phase, high resolution and stable output
Reference Standard Meter: High-precision standard with ±0.02% accuracy for reliable calibration
Meter Rack / Suspension System: Configurable positions for single-phase and three-phase meters, optional scanning heads or pulse detection
Control System & Software: Windows-based PC, automated test sequencing, database storage, result search, and report generation
Optional Accessories: Isolating current transformers, additional meter positions, extended harmonics module, communication interfaces
