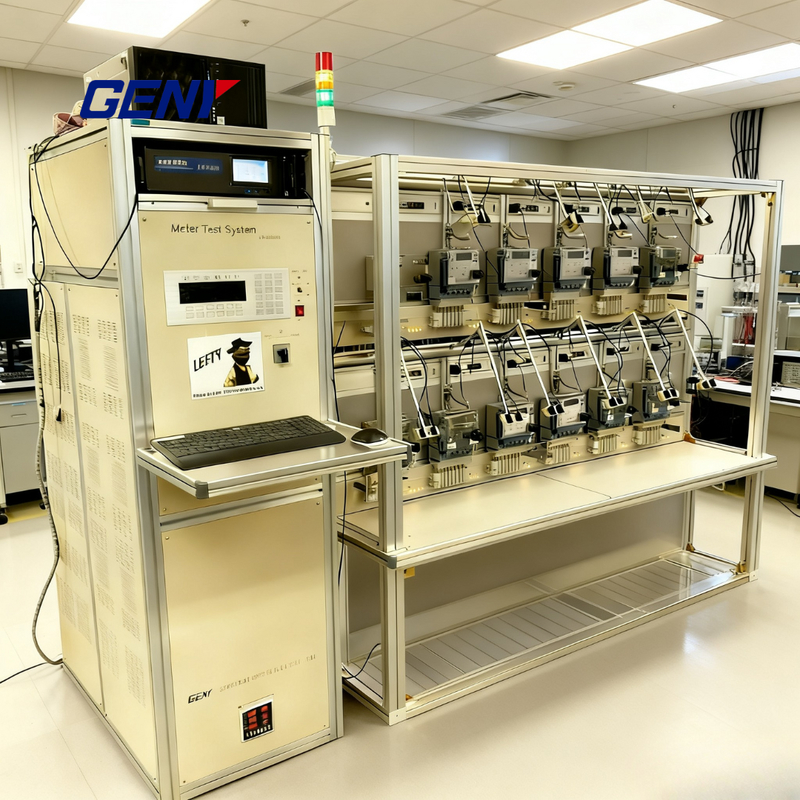

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Brand Name:	GENY
Model Number:	YC-1893D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Output Current Power:

2800VA (Max)

Output Voltage Power:

2000VA (Max)

Frequency Adjustment Range:

45Hz ... 65Hz

Continuous Current:

100A

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

automatic three phase smart meter tester

high-precision meter testing equipment

24-position stationary meter test equipment

Product Description

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Key Features

Compatible with 3P4W, 3P3W, and 1P2W meters for versatile testing
Automatic, semi-automatic, or manual operation modes
Simultaneous testing of multiple meters with different constants
Automatic rotor mark positioning for higher efficiency
Supports active power, reactive power, and cross-connected reactive power tests
Neutral current test, starting test, and creeping test (optional)
Optional ICT installation for testing three-phase meters with closed I-P links
Overload, short-circuit, and open-circuit protection for safety
Lightweight aluminum alloy body—strong, durable, and corrosion-resistant
User-friendly Windows software for error test, harmonic test, and influence test

Mechanical Structure

Whole Structure

The rack and power source part is a whole set, not only the electric part is a whole connection, but also the structure is connected together.

Fig.3-1 Whole structure test bench

Separate Structure

The rack and power source part is separate. Power source part is in a standard cabinet, it is only has electric connection with rack, if without connector (cable plug or connection port), they are two separate part.

Fig.3-2 Separate structure test bench

A test bench has 1 or 2 rack; it is depend on the quantity of MUT or customer's requirement. The rack include single side or both side rack, single line or double line rack. Following is the structure of equipment (introduce as example as separate structure test bench)

Fig.3-3 Inner structure of separate structure test bench

Fig.3-4 Rack
