Industrial Grade Smart Meter Test System

Industrial Grade Smart Meter Test System

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1891D

Power Supply:

AC220V±10%, 50Hz±2Hz

Output Voltage Range:

24V ... 288V

Output Current Power:

2000VA (Max)

Packaging Details:

Plywood

Supply Ability:

100/Year

Highlight:

Industrial smart meter tester

Stationary meter test system

Smart meter testing equipment

Product Description

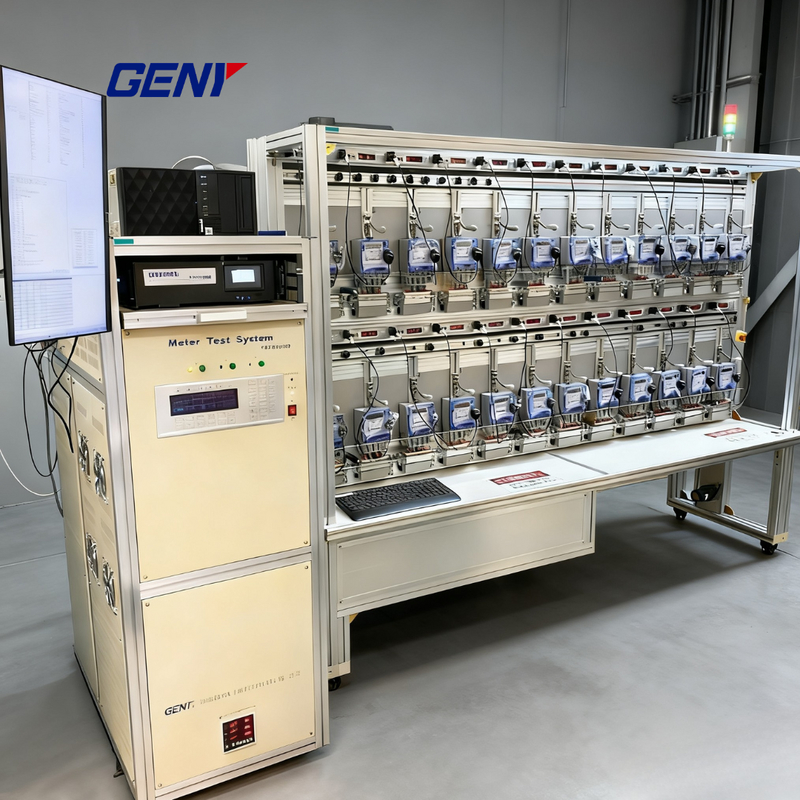

Industrial Grade Smart Meter Test System

Technical Specifications

Power Supply

Input Voltage: 240/415 V AC (+5% / -10%) or customizable
Frequency: 50/60 Hz ±2 Hz
Power Capacity: > 3 × 6 kVA
Ambient Temperature: -10°C to +40°C
Relative Humidity: 35% to 95% RH
System Grounding: Neutral solidly grounded
Surge Protection Level: ≥ 10 kV / 120 Joules (10/1000 µs)

Power Source

Voltage Output

Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customizable
Output Power: 3 × 100 VA
Resolution: < 0.01% of full-scale value
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time: 150 s)
Load Regulation (0-max load): < 0.01%
Distortion Factor: < 0.3% for linear resistive load
Harmonics: 2nd to 21st, freely programmable

Current Output

Test Current: 3 × (1 mA - 120 A)
Output Power: 3 × 150 VA
Resolution: < 0.01% of full-scale value
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time: 150 s)
Load Regulation (0-max load): < 0.01%
Distortion Factor: < 0.3% for linear resistive load
Harmonics: 2nd to 21st, freely programmable

Phase Angle

Range: 0° - 360°
Resolution: 0.01°
Setting Accuracy: 0.1°

Frequency

Range: 45 Hz - 65 Hz
Resolution: 0.01 Hz

Reference Standard

Power Supply

Voltage: AC 220 V ±10%
Frequency: 50 Hz ±2 Hz
Max Power Consumption: 45 VA

Operating Conditions

Ambient Temperature: 10°C - 30°C
Relative Humidity: 45% - 75% RH
External Magnetic Field Intensity: ≤ 0.025 mT
Frequency Range: 45 Hz - 65 Hz
