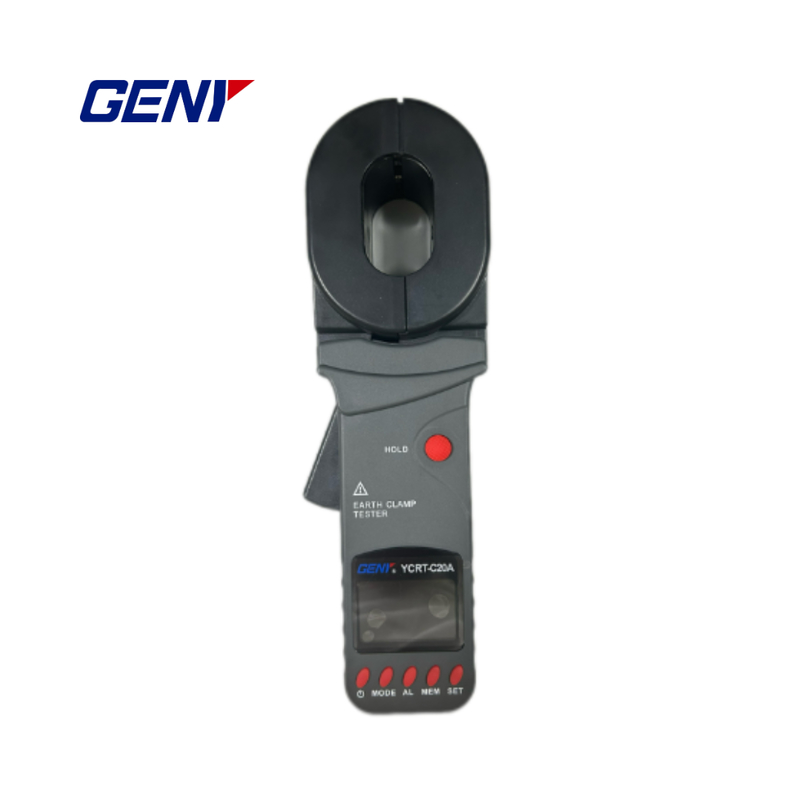

YCRT-C20A Clamp Ground Resistance Tester

Name: YCRT-C20A Clamp Ground Resistance Tester
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YCRT-C20A
Availability: InStock

Brand Name:	GENY
Model Number:	YCRT-C20A
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	20 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Ambient Temperature And Humidity:

23℃±5℃，below 75%rh

Storage Temperature And Humidity:

-20℃～60℃；below 70%rh

Working Temperature And Humidity:

-10℃～40℃；below 80%rh

Display Mode:

4-digit LCD Display, Black Screen Design

Packaging Details:

Plywood cases

Supply Ability:

20 pcs/ 1 months

Highlight:

4-digit LCD display Ground Resistance Tester

55mm×32mm jaw size Clamp Ground Resistance Tester

DC 6V power supply Earth Resistance Tester

Product Description

YCRT-C20A Clamp Ground Resistance Tester

Key Features

4-digit LCD display with black screen design, showing resistance and current synchronously
Compact dimensions: 285mm×85mm×58mm; Weight: 1180g (including battery)
Power supply: DC 6V (4 AA alkaline dry batteries) with real-time battery voltage display
Data storage capacity: 300 groups with memory status indicators
Overload protection indicators for resistance and current measurements
Automatic shutdown after 5 minutes of inactivity
Customizable alarm function with audible and visual alerts
Advanced anti-interference technology with automatic noise detection
Robust construction: shock-proof, dust-proof, and moisture-proof
Compliant with IEC safety standards for electrical measurement equipment

Measurement Functions

Ground resistance testing via clamp method (loop resistance measurement)
AC current measurement range: 0.00mA to 20.0A
Data management: storage, lock, review, and delete functions
Customizable alarm thresholds for resistance measurements
Multiple field application methods for different grounding systems
Automatic self-calibration on power-up
Intelligent interference detection with visual and audible alerts

Technical Specifications

Measurement Functions	Ground resistance test, Loop resistance test
Operating Conditions	23℃±5℃, below 75% RH
Power Supply	DC 6V (4 AA alkaline dry batteries)
Measurement Method	Mutual induction
Resolution	Resistance: 0.001Ω \| Current: 0.01mA
Jaw Size	55mm × 32mm
Display	4-digit LCD (46mm×29mm) with Ω + A synchronous display
Measurement Rate	2 times/second
Data Storage	300 groups with memory status indicators
Overload Indication	"OL" symbol for over-range conditions
Safety Standards	IEC61010-1 (CAT Ⅲ 300V, CAT IV 150V), IEC61010-031, IEC61557-1
Environmental Rating	Operating: -10℃～40℃, below 80% RH \| Storage: -20℃～60℃, below 70% RH
Insulation	Above 20MΩ (500V between circuit and case)
Dielectric Strength	AC 3700V/rms (between circuit and case)

All specifications are subject to change without notice. Consult product manual for complete details.
