SW-5D Time-Base Frequency Instrument with 7 Selectable Standard Outputs 1.3" OLED Display and OCXO Temperature Deviation ≤ 0.05 ppm

Name: SW-5D Time-Base Frequency Instrument with 7 Selectable Standard Outputs 1.3" OLED Display and OCXO Temperature Deviation ≤ 0.05 ppm
Brand: Guangzhou GENY Electric Co., Ltd
SKU: SW-5D
Availability: InStock

Brand Name:	GENY
Model Number:	SW-5D
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Document:

SW-5D(V2.1)User’s Manual-...EN.pdf

Test Reference Temperature:

25℃

Warm Start:

27S

Hot Start:

Cold Start Sensitivity:

-148dBm

Default Crystal Oscillator Clock Pulse Frequency:

625kHz/s

Crystal Oscillator Clock Pulse Frequency Accuracy::

≤4×10-7

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

7 selectable standard outputs Time-Base Frequency Instrument

1.3" OLED display Frequency Standard Instrument

OCXO temperature deviation ≤ 0.05 ppm Clock Verification Instrument

Product Description

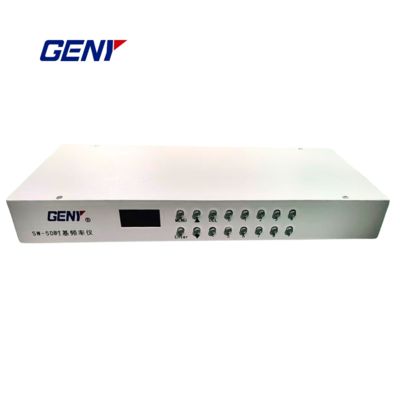

SW-5D Time-Base Frequency Instrument

Precision instrument designed for electricity meter clock verification with high-stability time base and GPS synchronization.

Key Features

High-stability OCXO time base; frequency accuracy ≤ 4*10^-7
GPS time sync and correction via Ethernet (second-level synchronization)
7 selectable standard outputs: 0.5 Hz / 1 Hz / 100 kHz / 500 kHz / 625 kHz / 1 MHz / 2 MHz
Pulse input measurement: 0.1 Hz-1 MHz, with automatic daily time error calculation
1.3" OLED display, simple keypad, remembers last output frequency

Technical Specifications

Time Base	OCXO; temperature deviation ≤ 0.05 ppm at -20℃ to +60℃ (ref 25℃)
Default Output	625 kHz; 50% duty cycle; levels: High 4.5 V / Low 0.11 V (typ.)
GPS Performance	Cold start ~29 s, hot start ~1 s; sensitivity: capture -148 dBm / tracking -165 dBm
Error Test	Duration 1-100 s (default 60 s); displays measured input frequency and daily time error
I/O	F-IN (frequency measurement), F-OUT (standard frequency output)
Communications	RJ45 Ethernet (default IP 192.168.1.199, port 1234), RS-232 (reserved)
Power	AC 220 V (fused), chassis ground terminal

Applications

Accuracy verification of internal clocks in multifunction energy meters
Laboratory and field time-base standard output and pulse frequency measurement
GPS-based time synchronization for calibration systems

Installation Guide

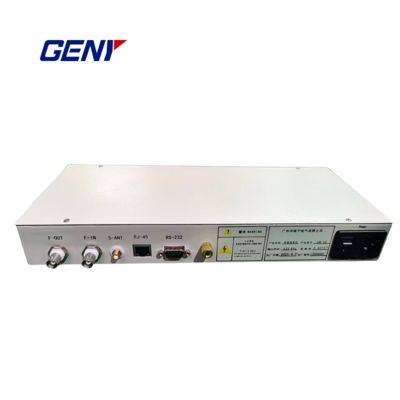

Connect F-OUT to system comm board J2 (adapter cable included)
Connect S-ANT to outdoor antenna for GPS time sync
Use Ethernet for IP/port configuration and standard time read/write

Ordering Information

Model: SW-5D Time-Base Frequency Instrument
Standard accessories: output adapter cable, AC power cord, user manual
Options: GPS antenna and extension cable, RS-232 cable
