Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Name: Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 PCS
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Test Current Output:

3 × (0.3mA – 20A)

Power Of The Current Output:

3 × 1500VA

Power Of The Voltage Output:

3 × 1000VA

Frequency Range:

45Hz – 65Hz

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (integration Time 150 S)

Packaging Details:

plywood case

Supply Ability:

30 pcs per month

Highlight:

24-Meter Positions Energy Meter Test Bench

60° Bevel Structure Stationary Meter Test Bench

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

Product Description

Customizable Three-Phase Energy Meter Verification Bench

Customized Part

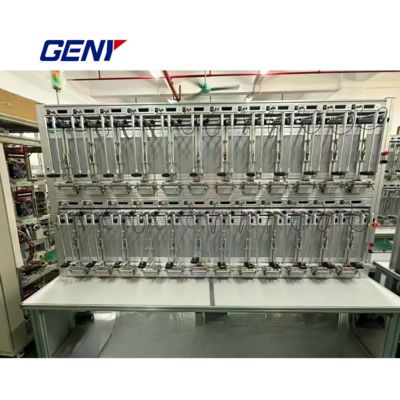

1. Automatic Suspension Test Rack

Three-phase 24-meter positions distributed on two sets of meter racks
Each rack has two rows arranged on one side with 6 positions per row
Equipped with rotatable mechanism
Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane

Complete protection against direct and indirect electric shocks

Three-color indicator light on top of each rack
Automatic wiring function for each position
Fully automatic wiring and positioning capability
Stepping motor drives automatic wiring for each station
Near-infrared reading head and photoelectric head automatically align with meters
Automatic short-circuit function for each station
Automatic open circuit status checking with short circuit activation

Each meter position has customized QCD for Landis+Gyr meter models E650/E660/E850/E860:

A 24-port MOXA serial port server installed under the table-board provides meter communication capability for simultaneous automatic calibration.
