SmartCal Meter Testing Bench with 3 × 220V±10% Voltage, 3 × (24V – 300V) Test Voltage, and 3 × (0.3mA – 20A) Current Output

Name: SmartCal Meter Testing Bench with 3 × 220V±10% Voltage, 3 × (24V – 300V) Test Voltage, and 3 × (0.3mA – 20A) Current Output
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 PCS
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Voltage:

3 × 220V±10%

Test Voltage Output (Phase-Neutral):

3 × (24V – 300V)

Test Current Output:

3 × (0.3mA – 20A)

Power Of The Current Output:

3 × 1500VA

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h (integration Time 150 S)

Distortion Factor:

Better Than 0.3% For Linear Resistance Load

Packaging Details:

plywood case

Supply Ability:

30 pcs per month

Highlight:

3 × 220V±10% SmartCal Meter Testing Bench

3 × (24V – 300V) Stationary Meter Test Bench

3 × (0.3mA – 20A) Meter Test System

Product Description

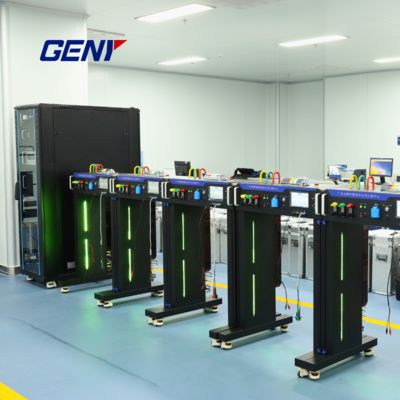

SmartCal Meter Testing Bench

Key Features

Supports RS232 communication for parallel testing of smart meters
Designed for Landis+Gyr 3-phase meter calibration and verification
High-precision reference standard meter accuracy testing
Pre-warming function for stable measurement conditions
Built-in calibration terminals for test bench verification
Automatic wiring and short-circuit protection for each station
Custom QCD (Quick Connection Device) for Landis+Gyr meters
PC software support for ESAM protocol testing

Supported Tests (IEC-Compliant)

Accuracy test
Starting current & no-load test
Repeatability of error
Clock frequency accuracy
Maximum demand test
Influence quantity tests (voltage, frequency, phase sequence, unbalance)
Harmonics & sub-harmonics testing (IEC 62052-11 / 62053-21/22/23)

Applications

Ideal for meter manufacturers, utilities, and testing labs requiring reliable, automated, and standards-compliant smart meter testing.
