LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level

Name: LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level
Brand: Guangzhou GENY Electric Co., Ltd
SKU: LPEP 270/20G T3
Availability: InStock

Brand Name:	GENY
Model Number:	LPEP 270/20G T3
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Rated Voltage “U0”:

220V

Max. Continuous Voltage “Uc”:

270V

Max. Discharge Current “Imax”:

40kA

Frequency:

0-65Hz

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

385V Max Continuous Voltage Surge Protective Device

35mm Rail Mounting SPD

Up≤1.8kV Protection Level Lightning Protection Device

Product Description

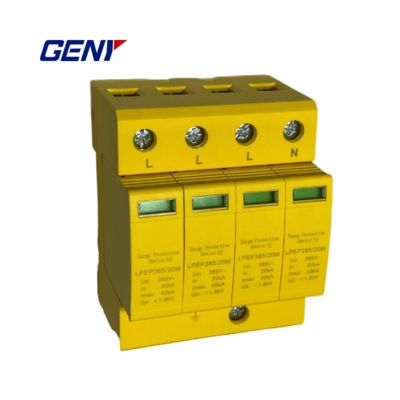

LPEP 385/20M Series Surge Protective Device

The LPEP 385/20M T2 Series Surge Protective Device provides reliable overvoltage and surge protection for power secondary systems, including distribution cabinets, feeder panels, control/monitoring panels, and UPS cabinets.

Features & Functions

High-quality phosphor bronze pins ensure minimal residual voltage and withstand repeated plugging
Advanced current-sharing technology for continuous and multiple lightning strikes
Fail-safe thermal cutoff mechanism prevents short circuits during faults
Compatible with online monitoring systems
V0 fire-rated housing with 35mm rail mounting for easy installation and maintenance

Operating Conditions

Temperature: -40°C to +60°C

Humidity: 30%-95% RH (at 25°C)

Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)

Specifications

Model	LPEP385/20M -4P/DL
Rated Voltage "U0"	220V
Max. Continuous Voltage "Uc"	385V
Nominal Discharge Current "In"(8/20uS)	20kA
Max. Discharge Current "Imax"	40kA
Protection Level "Up"	Up≤1.8kV
Response Time "tA"	≤25ns
Frequency	0-65Hz
Protection Model	Common Mode Protection
Power System	TT, TN
Dimensions	72mm90mm68mm
