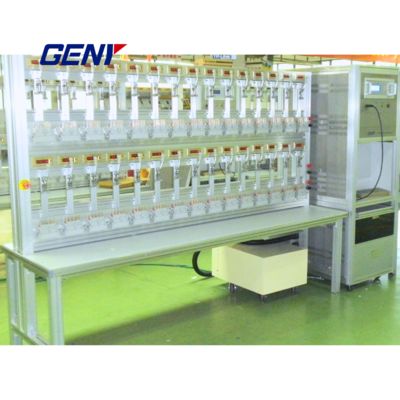

Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement

Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement

Brand Name:	GENY
Model Number:	YC-1891D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Test Voltage Output (Phase-Neutral):

24V – 300V

Power Of the Current output:

1500VA

Frequency Range:

45Hz – 65Hz

Power of the voltage output:

2000VA

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

Flexible Energy Meter Testing Equipment

High-Precision Meter Test Equipment

Modular Design Stationary Meter Test Equipment

Product Description

Flexible Energy Meter Testing Equipment

GENY's Meter Test Equipment utilizes advanced electronic measurement technology and a modular design. By integrating differential reference standards with high-precision power amplifiers, our systems deliver accurate and reliable performance.

Ideal Applications

Electric energy meter manufacturers
Electric power utilities
Metrology laboratories
Measurement and quality inspection departments
Industrial factories and enterprises

Our solutions are designed to meet the demanding requirements of modern power measurement and testing environments.

Technical Parameters

Power Supply

Voltage	3×230/398V±10%
Frequency	50/60Hz±2Hz
Power capacity	> 6kVA
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Power Source

Voltage

Test voltage output (Phase-Neutral)	24V - 300V
Power of the voltage output	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current

Test current output	1mA - 120A
Power of the current output	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Phase angle

Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°

Frequency

Range	45Hz - 65Hz
Resolution	0.01Hz

MSVT

Number of secondary	50
Voltage range	300V
Ratio	1:1
Primary to secondary ratio error	0.25%
Secondary to secondary ratio error	0.02%
Secondary to secondary Phase error	0.02°
Frequency range	45Hz - 65Hz
Output power (per winding)	15VA
