20 Positions 0.02 Accuracy Reference Three-Phase Test Bench

Name: 20 Positions 0.02 Accuracy Reference Three-Phase Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Three-phase meter test syst...em.pdf

Storage Temperature:

-5℃ To 55℃

Ambient Operation Temperature::

+5℃ To 50℃

Relative Humidity:

45% To 95%

Test Voltage Output(Phase-Neutral):

P-N (0 To 320V) , P-P (0 To 550 V) Customized

Test Current Output:

3 × (1mA - 120A)

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Highlight:

20 positions meter test bench

three-phase test bench with 0.02 accuracy

stationary reference test bench

Product Description

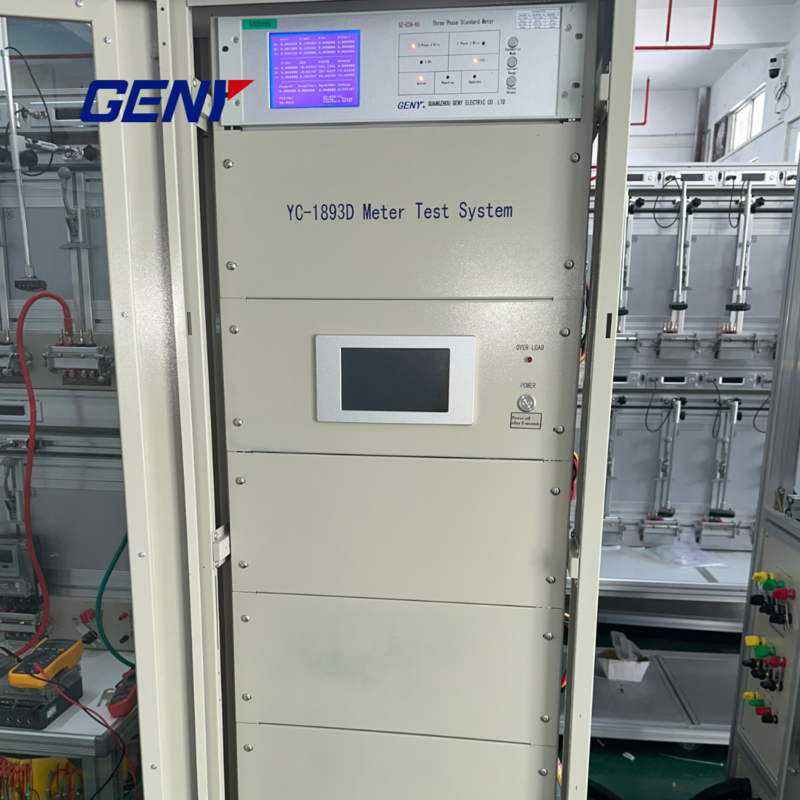

20 Positions 0.02 Accuracy Reference Three-Phase Test Bench

Guangzhou GENY Electric Co. Ltd. is a professional energy meter test bench manufacturer with more than 30 years' history. We are the first energy meter test bench exporter in China, and our equipment has been exported to more than 37 countries. This test bench is designed and manufactured in compliance with IEC 60736 Standard and all Chinese Standards relative to safety requirements which are equivalent to IEC 1010-1 and IEC 348 to meet all IEC requirements for electricity meter calibration.

Our high-precision Three Phase Energy Meter Test Bench is designed to test and calibrate 1 to 20 single-phase or three-phase energy meters simultaneously. The system complies with IEC standards 62052-11 and 62053, supporting accuracy classes 0.1, 0.2, 0.5, 1, and 2. This universal energy meter test system is engineered for electric utilities, testing labs, and meter manufacturers looking for a reliable, accurate, and versatile testing platform.

Key Features of the Energy Meter Test Bench:

Supports both three-phase and single-phase meter testing (2-wire, 3-wire, 3-wire and 4-wire systems)
Simultaneous calibration of up to 20 energy meters
Built-in ICTs for high-accuracy meter testing
Compatible with direct and indirect meter connections
Supports symmetrical and asymmetrical wiring configurations
Calibrating terminals integrated on the rack for easy test bench verification
Parallel communication ports (RS232 / Ethernet) for testing smart meters and AMI devices
Pre-heating / Pre-warming functionality before calibration
Fully compliant with IEC standards for accuracy and safety
