Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs

Name: Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 PCS
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Accuracy Class Of ICT:

0.05 / 0.01

Test Voltage Output(Phase-Neutral):

3x(24V~288V)(or Customized)

Frequency Range:

45Hz~65Hz

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

Three Phase meter testing equipment

I-P Close Link calibration tool

Stationary meter test equipment with warranty

Product Description

Three Phase I-P Close Link Meter Testing Equipment for calibration 6/12/24/48 MTUs

Guangzhou GENY Electric Co., Ltd. is a professional manufacturer of power metering and testing equipment, established in 2002. With the registered brand "GENY", we are known for reliable quality, innovative design, and strong industry expertise.

We focus on R&D and production of electric meter testing systems, serving utilities and industrial users with trusted solutions.

The test bench is a high-precision three-phase meter test system with an accuracy class of 0.02%, capable of testing up to 6 meters simultaneously. It integrates ICTs (Information and Communication Technologies) and features a multi-serial port communication system for efficient parallel testing of smart meters.

Voltage	3×240±15%
Frequency	50 Hz ±15%
Power capacity	> 6 kVA
Power efficient(at full load)	≥85%
Ambient temperature	-10 °C -- +40 °C
Relative humidity	35% -- 85%

Voltage
Test voltage output (Phase-Neutral)	3×(24 V – 480 V) or 600 V F-F customized
Power of the voltage output	3×100VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	0.3 mA – 120 A
Power of the current output	3×150VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45 Hz – 65 Hz
Resolution	0.01 Hz

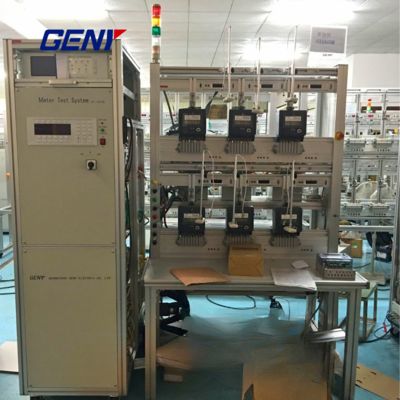

Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs 0

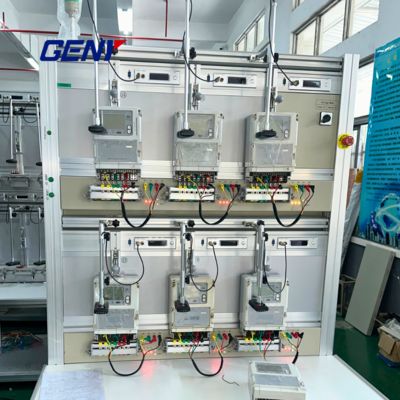

Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs 1
