RS232 Connector Optical Probe for Communication Interface 32mm Diameter

RS232 Connector Optical Probe for Communication Interface 32mm Diameter

Brand Name:	GENY
Model Number:	YC-232/USB-IEC-TL
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Type:

Meter Testing Accessory

Communication Interface:

RS232

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

RS232 connector optical probe

communication interface testing accessory

32mm diameter optical probe

Product Description

RS232 Connector Optical Probe for Communication Interface 32mm Diameter

Product Specifications

Type	Meter Testing Accessory
Communication Interface	RS232

RS232 Optical Sensor for Smart Metering

This advanced RS232 optical sensor supports industry standards including IEC 62056-21, ANSI, and ANSI-Type2, ensuring broad compatibility with smart meters and industrial devices. With a maximum baud rate of 115200 bps, it delivers fast and reliable data transmission. The sensor features a standard RS232 (DB9) connector for easy integration.

Key Specifications

Communication Interface: RS232
Supported Standards: IEC 62056-21 / ANSI / ANSI-Type2
Maximum Baud Rate: 115200 bps
Connector Type: RS232 (DB9)
Sensor Light Wavelength: 900 nm
Cable Length: Standard 1.5 meters; optional 1m, 2m, or 3m lengths available
Mounting Method: Strong magnetic adhesion compliant with IEC 62056-21
Magnet Holding Power: N40 / N54 (optional)
Housing Material: Impact-resistant PBT+GF
Operating Temperature: -40℃ to 70℃ for harsh environments
Dimensions: Optical port diameter 32 mm; height 23 mm
Weight: 80 grams
Protection Rating: IP54 dust and splash resistant

Product Highlights

Compatible with multiple international communication protocols for smart metering
High-speed, stable data transmission supporting demanding industrial applications
Secure magnetic mounting ensures easy installation and stable connection
Durable, impact-resistant housing protects against harsh conditions
Various cable length options to meet different installation requirements

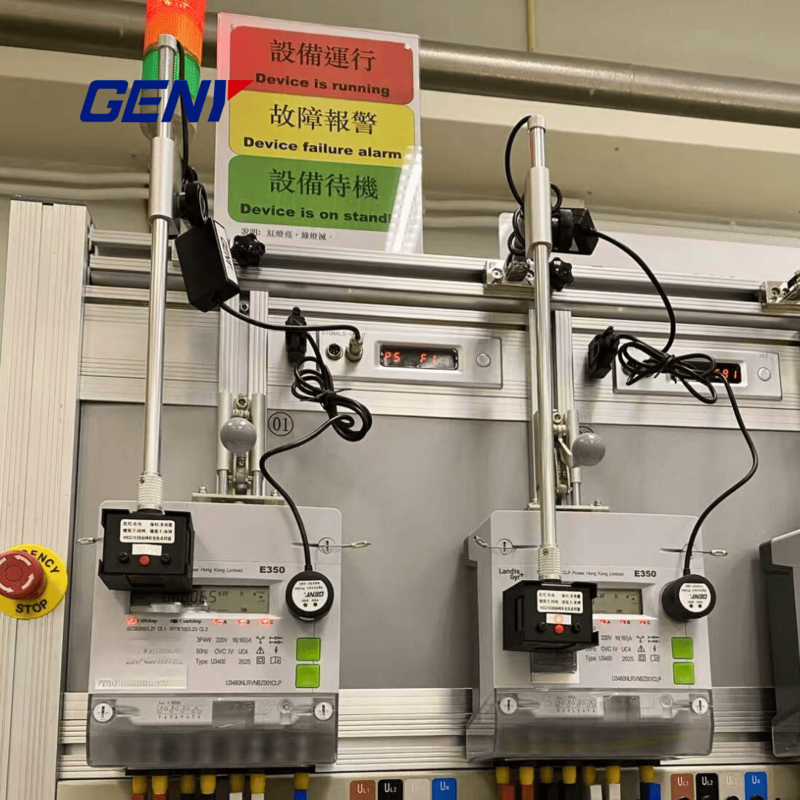

This RS232 optical sensor is ideal for smart meter reading, industrial automation, and data acquisition systems, delivering reliable communication and superior performance in tough industrial environments.
