YC99T-5C Pro Portable Meter Test Equipment

Name: YC99T-5C Pro Portable Meter Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T-5C pro
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T-5C pro
MOQ:	1pcs
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

AC Voltage Output Max. Load:

50VA / Phase

AC Current Output Stability:

0.01%/2min

Frequency Output Accuracy:

0.002 Hz

Main Unit Weight:

38kg

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

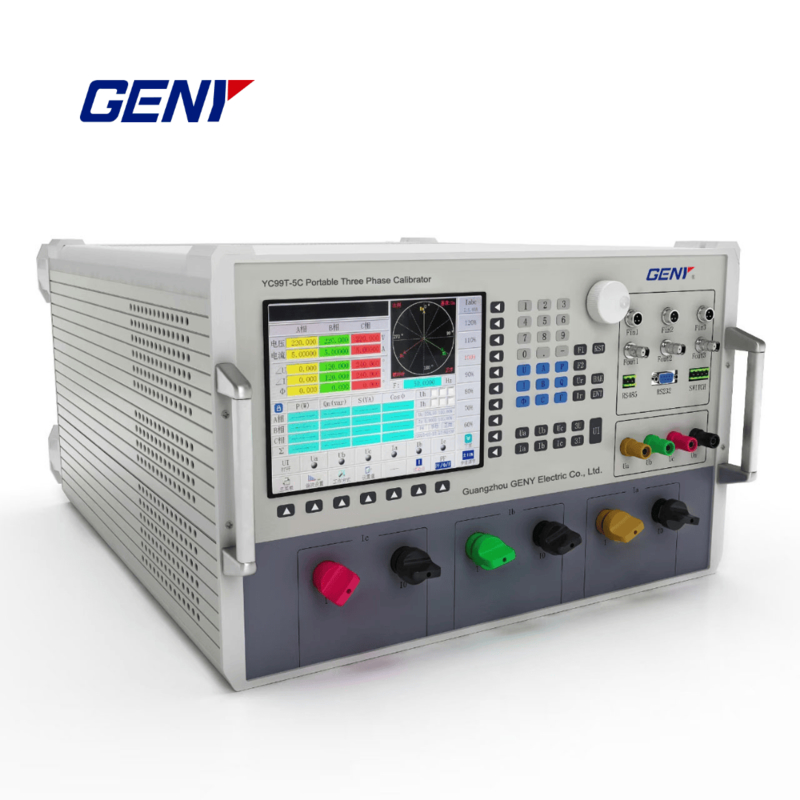

YC99T-5C Pro Portable Meter Test Equipment

Features & Functions

• Three-phase fully automatic or manual-control energy-meter test system with reference standard and integrated current and voltage source.
• It can calibrates basic error, creeping, starting, and standard deviation automatically or single-step manually; automatic calibration sequences can be user’s request.
• Verifies and calibrates max 3 units single-phase meters,or three-phase meters complying with MS IEC 62052-11, MS IEC 62053-21, 62053-22, 62053-23, 62053-31, MS IEC 62063-61, and BS 568.
• Current source outputs up to 3 × 120 A continuously for a minimum of 8 hours.
• Current and voltage sources selectable independently; current, voltage, and phase shift adjustable with high accuracy on a per-phase basis.
• Optional capability to test 3 three-phase close-link meters.
• Generates 2nd–63rd harmonics; functions as a harmonic source.
• Automatic operation via predefined load points using onboard keyboard, mouse, or external laptop.
• Displays voltage, current, phase angle, vector diagram, waveform, harmonics, etc.
• Current output can be customized.
• 32 GB internal memory for customer data and measurement results.
• Saved test results uploadable to external laptop via Ethernet.
• Compact, robust design with long-term stability.

Specifications

AC Voltage Output	Output range	57.7V, 100V, 220V, 380V
	Adjustment range	(0 ~ 120)%RG
	Adjustment degree	0.01%RG, 0.1%RG, 1%RG; 10%RG are optional
	Stability	0.01%/2min
	Distortion	≤0.2% (Non-capacitive load)
	Output max. Load	50VA / phase
	Measurement accuracy	0.05%RG
	Output range	50mA, 200mA, 1A, 5A, 20A, 150A
AC Current Output	Adjustment range	(0 ~ 120)%RG
	Adjustment degree	0.01%RG, 0.1%RG, 1%RG; 10%RG are optional
	Stability	0.01%/2min
	Distortion	≤0.2% (Non-capacitive load)
	Output max. Load	10VA/50mA,20VA/0.02A,1A,5A,50VA/20A, 150VA/100A
	Measurement accuracy	0.05%RG
	stability	0.01%RG/2min
Power Output	Active & Reactive power measurement accuracy	0.05%RG
	Phase Output
Phase Output	Adjustment degree	10°, 1°, 0.1°, 0.01° are optional
	Resolution	0.01°
	Accuracy	0.05°
	Adjustment range	-1 ~ 0 ~ +1
Power Factor Output	Measurement resolution	0.0001
Power Factor Output	Measurement accuracy	0.0005
	Adjustment range	40Hz ~ 70Hz
Frequency Output	Output adjustment degree	1Hz, 0.1Hz, 0.01Hz, 0.001Hz are optional
	Resolution	0.001 Hz
	Accuracy	0.002 Hz
	Harmonic times	2 ~ 63 times
Harmonic Set Up	Harmonic content	≤40%
	Harmonic phase	0° ~ 359.999°
	Harmonic set up error	2-51times:≤±0.1%(optional 63times,±0.1%)
	Active PF≥0.5	±0.5%RD
Energy Error Measurement	Active PF=1	±0.01%RD
	Reactive PF≥0.5	±0.1%RD
	Reactive PF=1	±0.2%RD
	Power Supply	AC 220V±15% or 110V±15%, 50Hz~60Hz
General Specification	YC99T-5C: 38kg

YC99T-5C Pro Portable Meter Test Equipment 0

YC99T-5C Pro Portable Meter Test Equipment 1

YC99T-5C Pro Portable Meter Test Equipment 2
