PolyPhase Portable Meter Test Equipment YC99T-5c 0-600V Electrical Meter Calibration

Name: PolyPhase Portable Meter Test Equipment YC99T-5c 0-600V Electrical Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T-5c
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T-5c
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Storage Temperature:

-20-70°C

Output Power:

Max. 250VA

Class:

0.05, 0.02

Output Accuracy:

0.05%, 0.02%

Test Functions:

Error, Power, Energy, Dial Test....

Voltage Ouput:

0V-450V

Operating Temperature:

0-50°C

Range:

0-600V, 0-120A

Test Meter Type:

Various Single And Three Phase Meter

Amplifier Type:

Linear

Harmonics:

2-63nd

Harmonic Output:

2-63

Function:

0.05% Voltage Source & Current Source

Measurement Range:

0-1000A

Power Source:

AC 220V ±15%

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

PolyPhase Portable Meter Test Equipment

600V Electrical Meter Calibration

Portable Meter Test Equipment YC99T-5c

Product Description

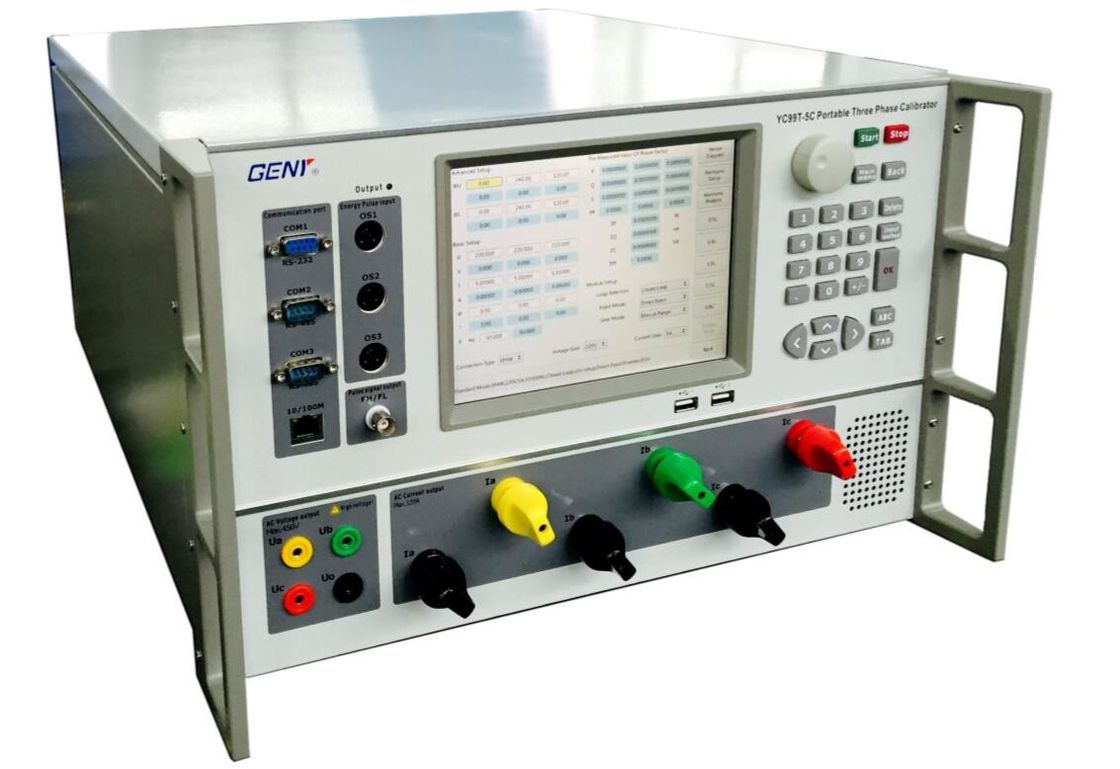

Poly Phase Stable Portable Meter Test Equipment for Active and Reactive Energy Meter Verification

Features & Functions

Supports DLT-645(2007)communication protocol,and can complete demand indication error,demand period error, time switching error, rate period energy indication error and other multi-function test projects.
Constant temperature crystal oscillator,which is able to verifies the daily time error of electric energy meter.
Fantastic panels screen and wiring arrangement.The front and rear panel are designed to be easy-operating
It can be used as harmonic power output equipment,which is able to equipment,which is able to create stable harmonic output.
Testing mode: active power, reactive power
Meter under testing:3P4W, 3P3W,1P2W

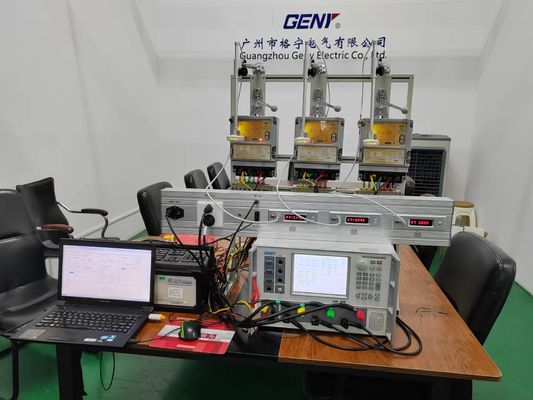

The calibrator is combined by a power source and calibration electronic instrument with wide current and voltage output range.
Starting test and creeping test are supported Test data can be managed by computer via LAN interface
YC99T not only can be operated by equipment but also can be controlled by PC
Calibrate energy meters automatically,which including items, such as,preheating,starting,creeping,error, influence, quantity test etc.Primary Competitive Advantages:
Easy operation
Strong and stable harmonic power source output
Multiple-type of active and reactive energy meter test

Product Parameters

Conditions and requirement of use
Voltage
Test voltage output(Phase-Neutral)	Power of the voltage output	Resolution	Accuracy	Stability
3*(0V-450V)	Max.3*20A	0.01%	0.05%	0.02%/120s
Current
Test current output	Power of the current output	Resolution	Accuracy	Stability
3*(1mA-120A)	Max.3*100VA	0.01%	0.05%	0.02%/180s
Phase angle
Range	Resolution	Accuracy
0-360°	0.01°	0.2°

Environment			Power			Safety
Temperature	Relative humidity	Altitude	Voltage	Frequency range	Waveform distortion	IP Class	Conformity
-10ºC--+40ºC	35%--85%	<2500m	220V±10%50/60Hz±2Hz	45Hz-65Hz	<0.3%	IP51	CE conform

Frequency	Resolution	0.005Hz
Pulse output	High frequency output(HF)	Multiple constance
Pulse output	Low frequency output(LF)	LF=HF/20000
Pulse input	Input channel	3
Pulse input	Input frequency	Max.20Hz
Dimension (LxWxH)	Main	Auxiliary
Dimension (LxWxH)	445 mmx180 mmx680 mm	990 mmx630 mmx730 mm
46 kg	46 kg	100 kg
