0.05 Class High-Precision 3-Phase Smart Meter Test Bench

Name: 0.05 Class High-Precision 3-Phase Smart Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Three-phase meter test syst...em.pdf

Class:

0.05

Test Current Output:

3x(0.3mA-120A)

Frequency Range:

45Hz – 65Hz

Test Voltage Output(Phase-Neutral):

3x(24V-300V)

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

0.05 Class High-Precision 3-Phase Smart Meter Test Bench

Description

• Parallel RS232 Communication Port – simultaneous multi-meter testing of smart meters
• Rack-Mounted Terminal Calibration – one-click bench verification for test stations
• Reference Standard Meter Accuracy Testing – traceable precision checks
• Pre-Warming Cycle – automated stabilization before measurement
• IEC Accuracy Test Suite – base error, starting current, creeping, repeatability, dial test
• Influence Quantity Tests – voltage, frequency, reverse phase sequence, voltage unbalance
• Harmonics & Sub-Harmonics – immunity to odd harmonics and sub-harmonics per IEC standards

Technical Data

Power Supply

Voltage

3 ×230/398V±10%

Frequency

50 / 60Hz ±2Hz

Power capacity

>3 ×3kVA

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%

Voltage output

Test voltage output(Phase-Neutral)	3x(24V-300V)
Power of the voltage output	3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Current Output

Test current output	3x(0.3mA-120A)
Power of the current output	3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Phase Angle

Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°

Frequency

Range	45Hz-65Hz
Resolution	0.01Hz

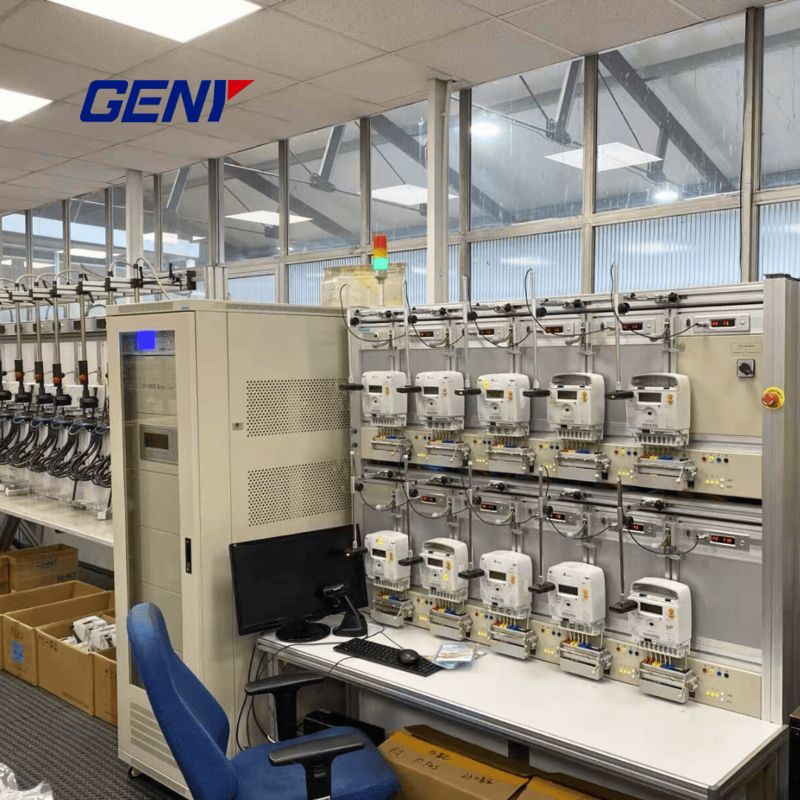

0.05 Class High-Precision 3-Phase Smart Meter Test Bench 0

0.05 Class High-Precision 3-Phase Smart Meter Test Bench 1

0.05 Class High-Precision 3-Phase Smart Meter Test Bench 2

0.05 Class High-Precision 3-Phase Smart Meter Test Bench 3
